Set The Compass Variance Manually As Follows:
- Using the Variance Settings Map, find your geographic location and note the zone number.

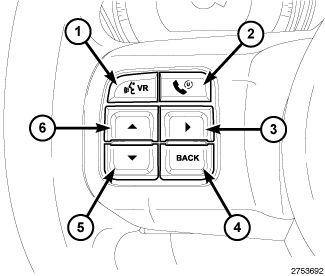

- Turn the ignition switch to the ON/RUN position. Press and release the SCROLL push buttons (5 or 6) until "System Set-up" is displayed and highlighted.
- Press and release the STEP push button (3) to open the menu.
- Using the scroll buttons, scroll through until " Compass Variance" is displayed and highlighted.
- Momentarily depress and release the STEP push button to begin.
- Using the same button toggle through the zone numbers (1-15), until the zone number for your geographic location appears in the display. The zone number will set automatically.NOTE:
The default for the compass variance from the factory is 8. During programming, the Zone value will wrap around from Zone 15 to Zone 1.
- Momentarily depress and release the BACK push button (4) return to the main menu.
- Confirm that the correct direction is now indicated by the compass.
- Using the scroll button (5 and 6), select " Turn Off Menu " to exit.
