B1A68-Steering Column Lock Module Bolt Control Low (Win): Notes

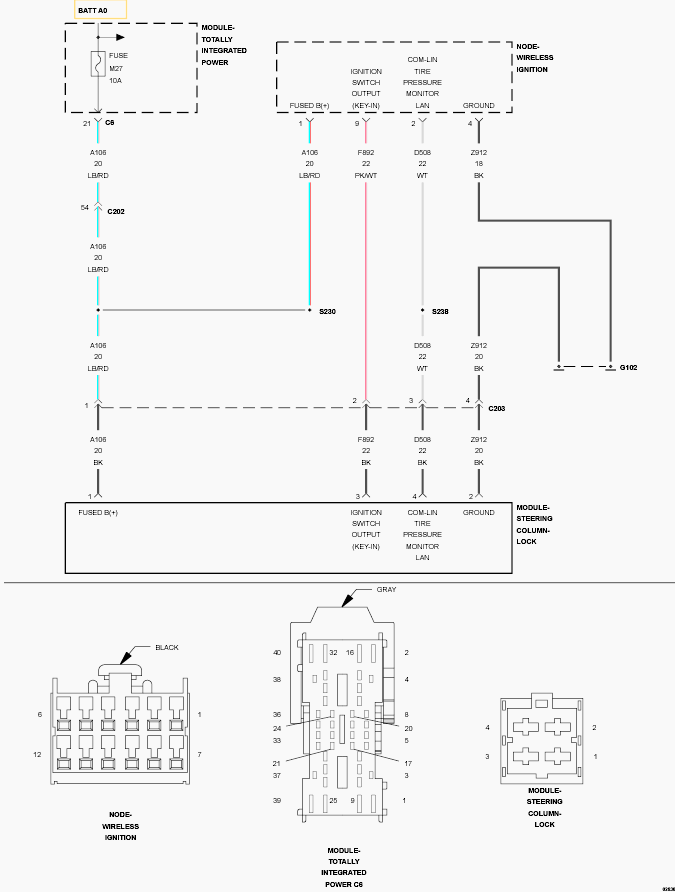

Fig 1: Steering Column Lock Module Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
