B1D0B-11-Driver Mirror Vertical Position Sensor Input - Circuit Short To Ground: Notes

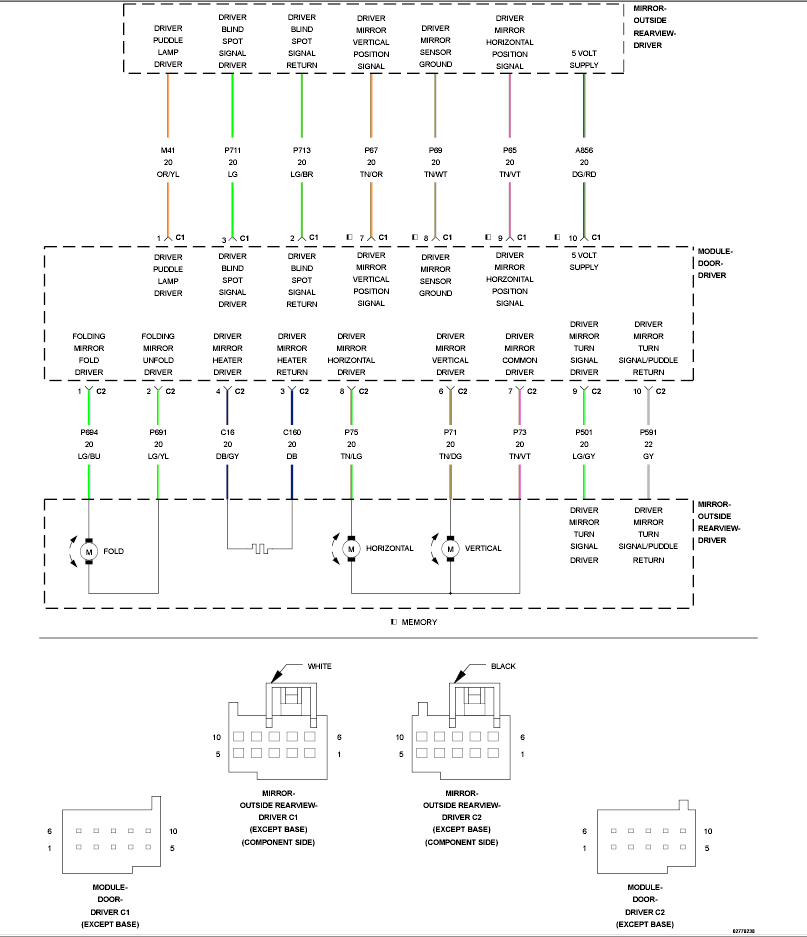

Fig 1: Driver Door Module Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
