C1486-4B-Rear Differential Motor Output Driver - Over Temperature: Notes

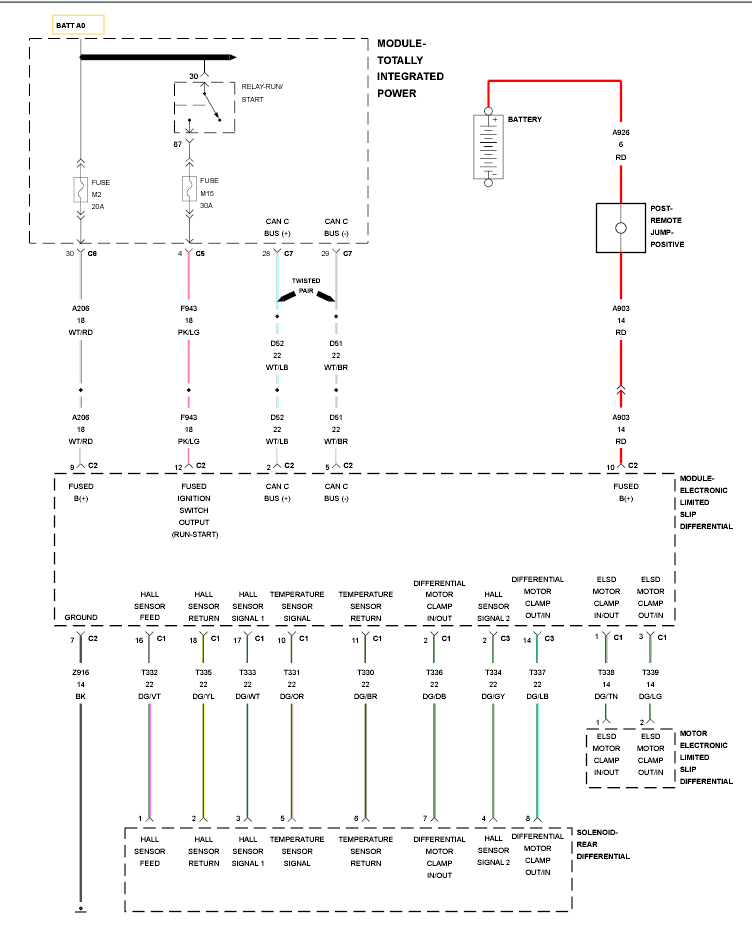

Fig 1: Rear Differential Control Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
