Module-Powertrain Control C2 (3.6L) (D3838B)

Harness-Family: Engine

Color: ORANGE

Gender: FEMALE

Part Number: 2-1326727-7

Part Description: NGC HEADER CONNECTION - INDEX B

Connector No: D3838B

Option: 3.6L

Repair Kit Part Number: 05083223AA

Cavity Count: 38

Fig 1: Module-Powertrain Control C2 Connector End View (3.6L)

Courtesy of CHRYSLER

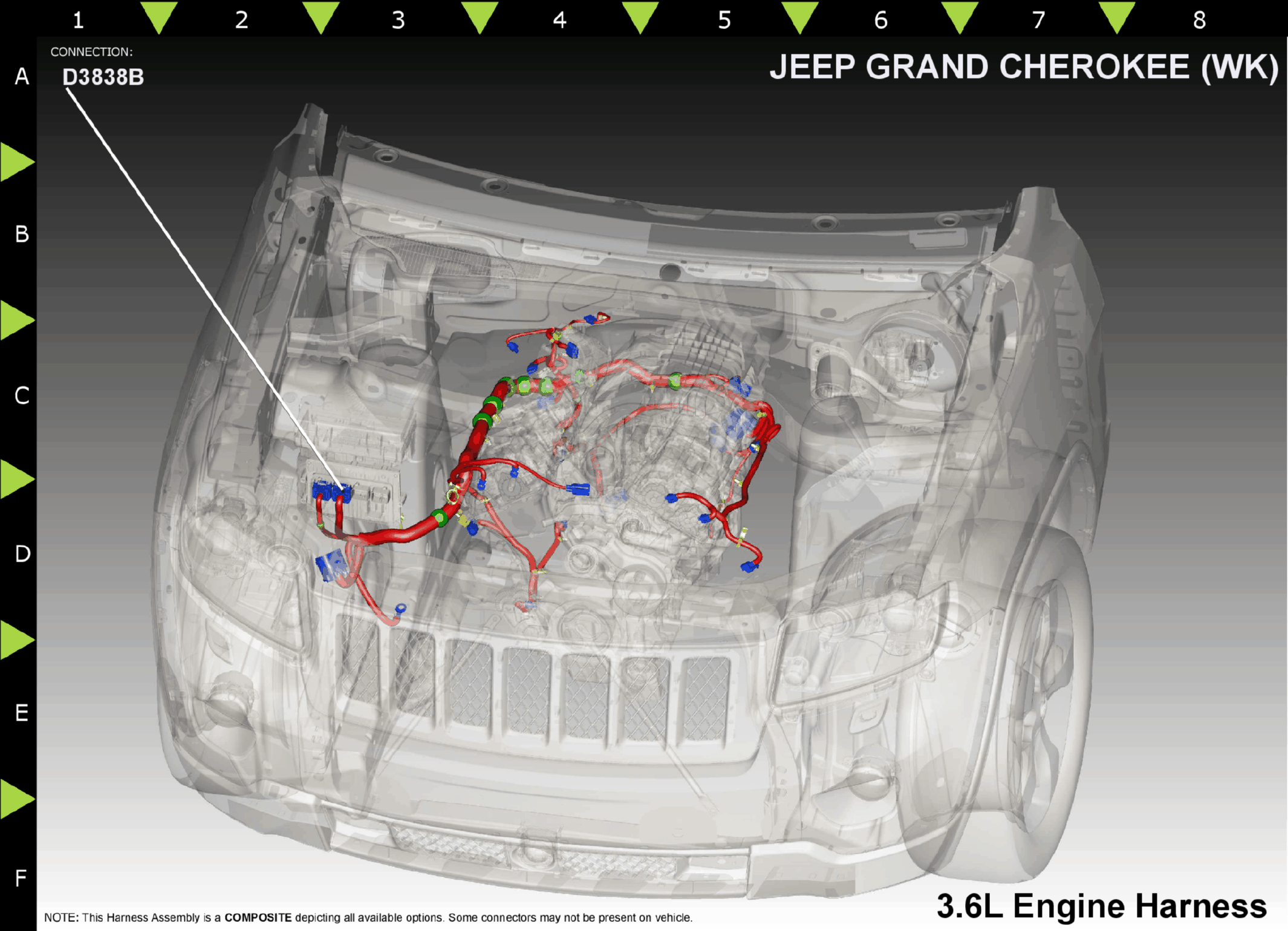

Fig 2: Module-Powertrain Control C2 Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K10

DB/OR

COIL CONTROL 6

N/A

K16

DB/YL

COIL CONTROL 5

N/A

K15

DB/PK

COIL CONTROL 4

N/A

K58

BR/VT

INJECTOR CONTROL 6

N/A

K38

BR/OR

INJECTOR CONTROL 5

N/A

K124

DB/GY

ETC MOTOR (+)

N/A

K18

DG/WT

COIL CONTROL 3

N/A

K78

BR/LB

VVT INTAKE CONTROL 2

N/A

K17

DB/TN

COIL CONTROL 2

N/A

K19

DB/DG

COIL CONTROL 1

N/A

K14

BR/TN

INJECTOR CONTROL 4

N/A

K13

BR/LB

INJECTOR CONTROL 3

N/A

K12

BR/DB

INJECTOR CONTROL 2

N/A

K11

BR/YL

INJECTOR CONTROL 1

N/A

K922

BR/DB

TP SENSOR RETURN

N/A

K199

BR/VT

O2 2/1 HEATER CONTROL

N/A

K99

BR/YL

O2 1/1 HEATER CONTROL

N/A

K125

BR/PK

GEN FIELD CONTROL

N/A

VT/OR

ECT SIGNAL

N/A

K22

TP 1 SIGNAL

N/A

K441

DB/BR

CMP SIGNAL 2

N/A

VT/BR

MAP SIGNAL

N/A

K942

BR/LG

KS 1 RETURN

N/A

K42

DB/YL

KS 1 SIGNAL

N/A

K900

DB/DG

SENSOR GROUND

N/A

K122

BR/DG

TP 2 SIGNAL

N/A

K855

BR/OR

5 VOLT SUPPLY

N/A

K21

LG/WT

IAT SIGNAL

N/A

K41

DB/LB

O2 1/1 SIGNAL

N/A

K904

LB/GY

O2 RETURN (DOWNSTREAM)

N/A

K43

LG/DB

O2 2/1 SIGNAL

N/A

K44

GY/DB

CMP SIGNAL

N/A

K24

BR/LB

CKP SIGNAL

N/A

K242

BR/WT

KS 2 SIGNAL

N/A

K924

WT/BR

KS 2 RETURN

N/A

K126

DB/LG

ETC MOTOR (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
