Steering System: Pump: Installation: 5.7L
Courtesy of CHRYSLER GROUP, LLC

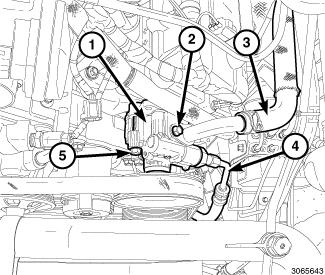

- Position the power steering pump (1) and using the holes in the pulley for access, install 3 pump mounting bolts (5) and tighten to 23 N.m (17 ft. lbs.).
- Install the pressure line (4) on the pump (1) and tighten the nut to 28 N.m (21 ft. lbs.).
- Install the supply hose (3) on the pump (1).
- Install the drive belt. Refer to BELT, SERPENTINE, INSTALLATION
.
- Install the air cleaner body. Refer to INSTALLATION
.
- Fill and bleed the system with power steering fluid. Refer to STANDARD PROCEDURE .
