Installation

INSTALLATION

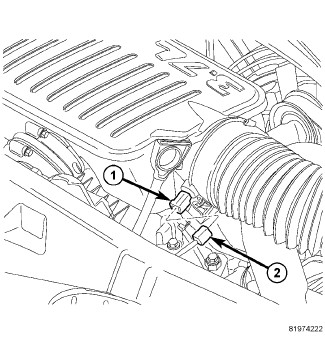

The intake manifold air temperature (IAT) sensor (1) is installed into the rubber air intake tube near the throttle body.

1. Clean mounting hole.
2. Check condition of sensor O-ring.
3. Push IAT sensor (1) into rubber intake tube while rotating for installation.
4. Connect electrical connector (2) to IAT sensor.
