Final Drive Control Module - Removal

REMOVAL

NOTE: The FDCM has two electrical connectors and is installed inside the passenger compartment behind the driver side knee bolster and is mounted to the left kick panel. On RHD vehicles the FDCM is located in a mirrored position on the right side.





1. Lower the drivers side knee bolster.

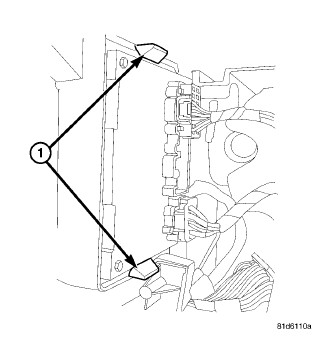

2. Push out on the two locking tabs (1) and remove the FDCM.

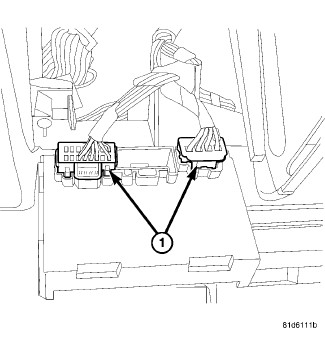

3. Disconnect the two electrical connectors (1) from the FDCM.
