B1B06-Driver Airbag Squib 2 Circuit Open: Notes

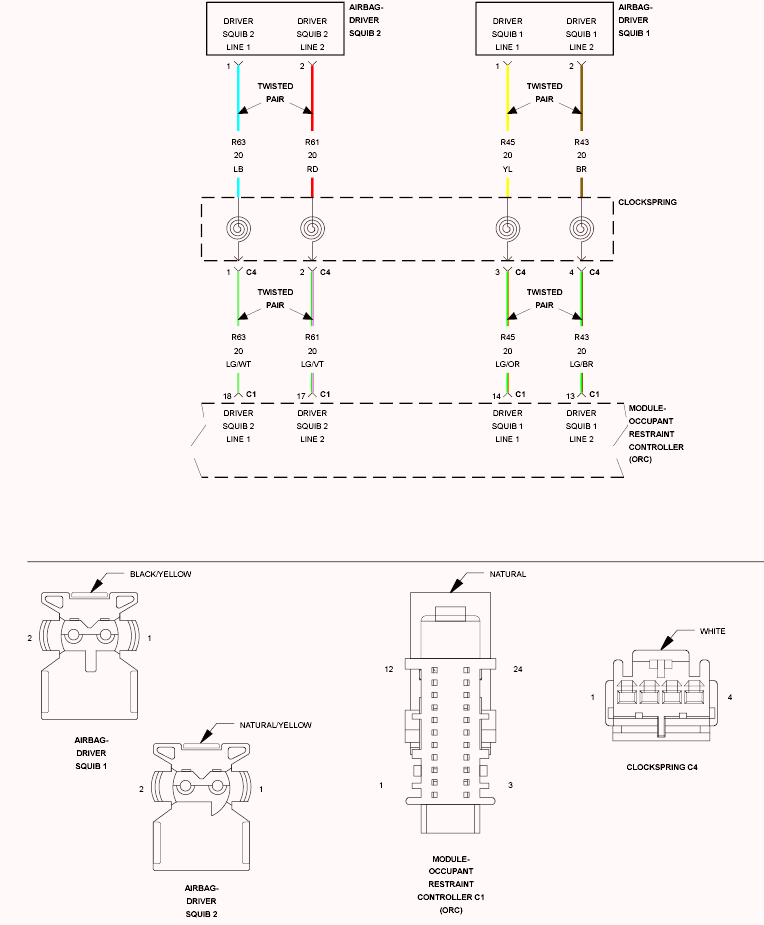

Fig 1: Driver Airbag Squib Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
