Radiator, Engine Cooling: Description: Description

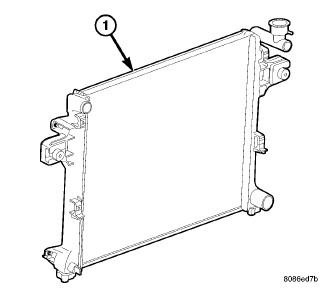

Fig 1: Cross Flow Radiator - Typical
GC0085467Courtesy of CHRYSLER GROUP, LLC
1 - RADIATOR

All vehicles are equipped with a cross flow type radiator (1) with plastic side tanks.

Plastic tanks, while stronger than brass, are subject to damage by impact, such as from tools or wrenches. Handle radiator with care.
