Module, Integrated Center Stack Screen: Installation: Mid

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

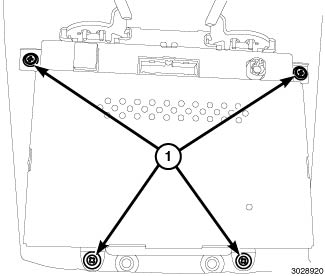

Fig 1: Retainers
GC0147700Courtesy of CHRYSLER GROUP, LLC
  1. Position the Integrated Center Stack (ICS) screen module into the instrument center bezel.
  2. Install the ICS module retainers (1).

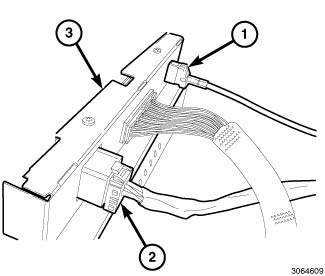

    Fig 2: Harness Connectors & Integrated Center Stack (ICS) Screen Module
    GC0147716Courtesy of CHRYSLER GROUP, LLC
  3. Connect the harness connectors (1 & 2) to the rear of the Integrated Center Stack (ICS) screen module (3).
    Fig 3: 40 - Way Connector
    GC0144026Courtesy of CHRYSLER GROUP, LLC
  4. Carefully connect the 40 - way connector.

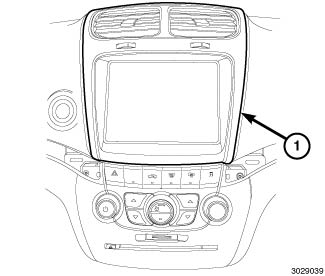

    Fig 4: Instrument Panel Center Bezel
    GC0147701Courtesy of CHRYSLER GROUP, LLC
  5. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
  6. Connect the negative battery cable.
