Module, Keyless Ignition Node: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Bezel Assembly

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the switch-bank and bezel assembly (1). Refer to POD, SWITCH BANK, REMOVAL .

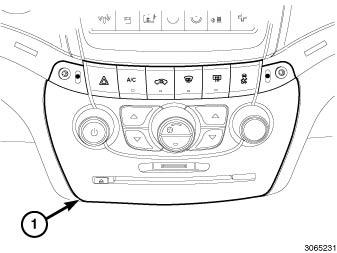

Fig 2: Instrument Panel Center Bezel
Courtesy of CHRYSLER GROUP, LLC
Remove the instrument panel center bezel (1). Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .

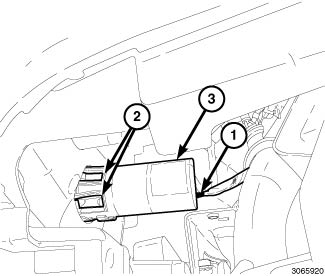

Fig 3: Wire Connector, Clips & KIN
Courtesy of CHRYSLER GROUP, LLC
Disconnect the wire connector (1) from the Keyless Ignition Node (KIN).
Push down on the release clips (2) (two on top and one on the bottom) and push the KIN (3) out the front of the instrument panel.
