Module-Transmission Control C1 (D3855A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 965222-1

Part Description: JPT CONNECTOR

Connector No: D3855A

Option: Standard

Repair Kit Part Number: 68040482AA

Cavity Count: 18

Fig 1: Module-Transmission Control C1 Connector End View
GCWD1016833Courtesy of CHRYSLER

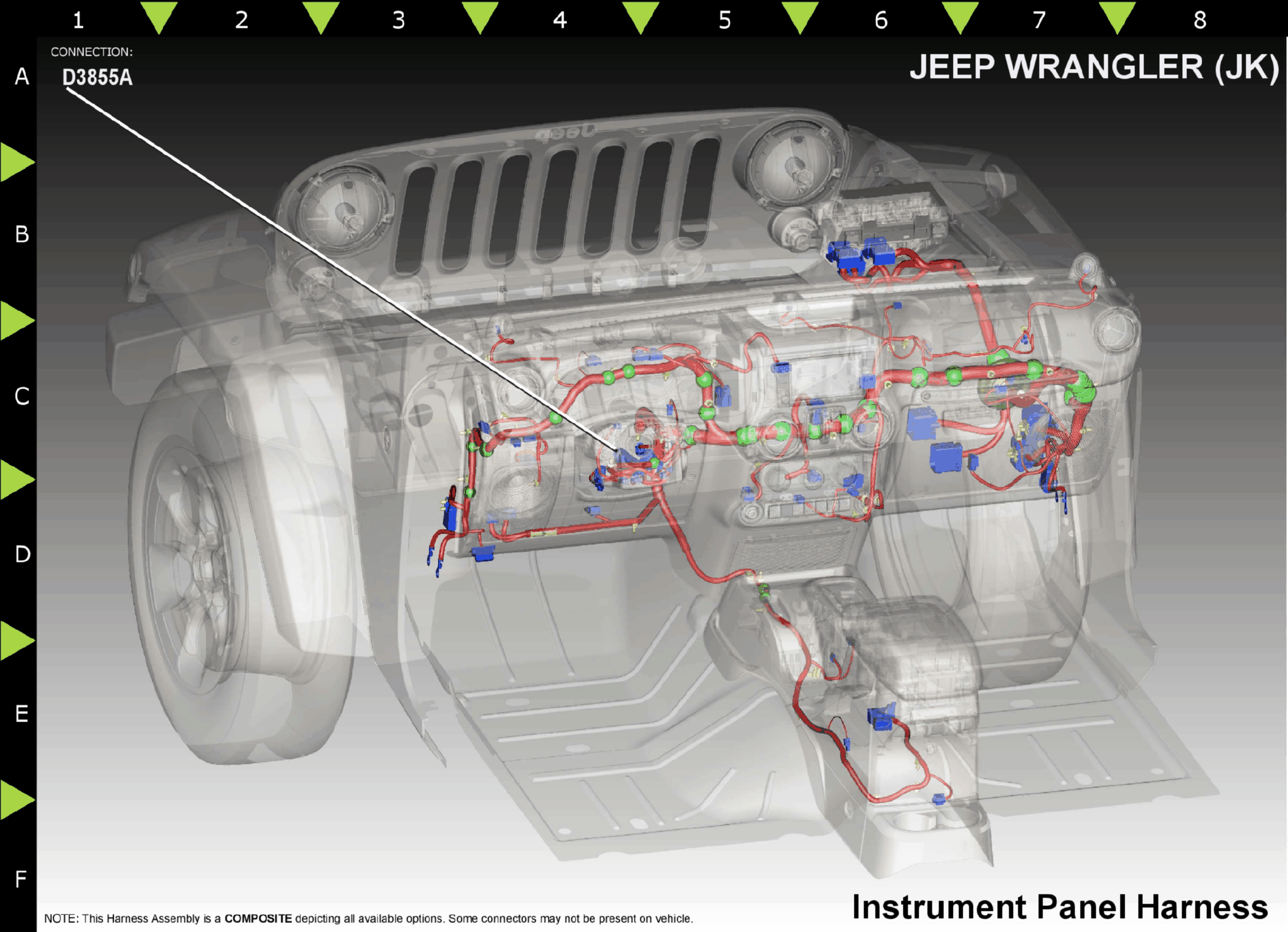

Fig 2: Module-Transmission Control C1 Component Location
GCWD1188821Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
29 T16 YL/OR 16 TRANSMISSION CONTROL OUTPUT N/A
30 Z916 BK 18 GROUND N/A
(1) Pins not listed are not used for this connector
