P0339-Crankshaft Position Sensor Intermittent: Notes

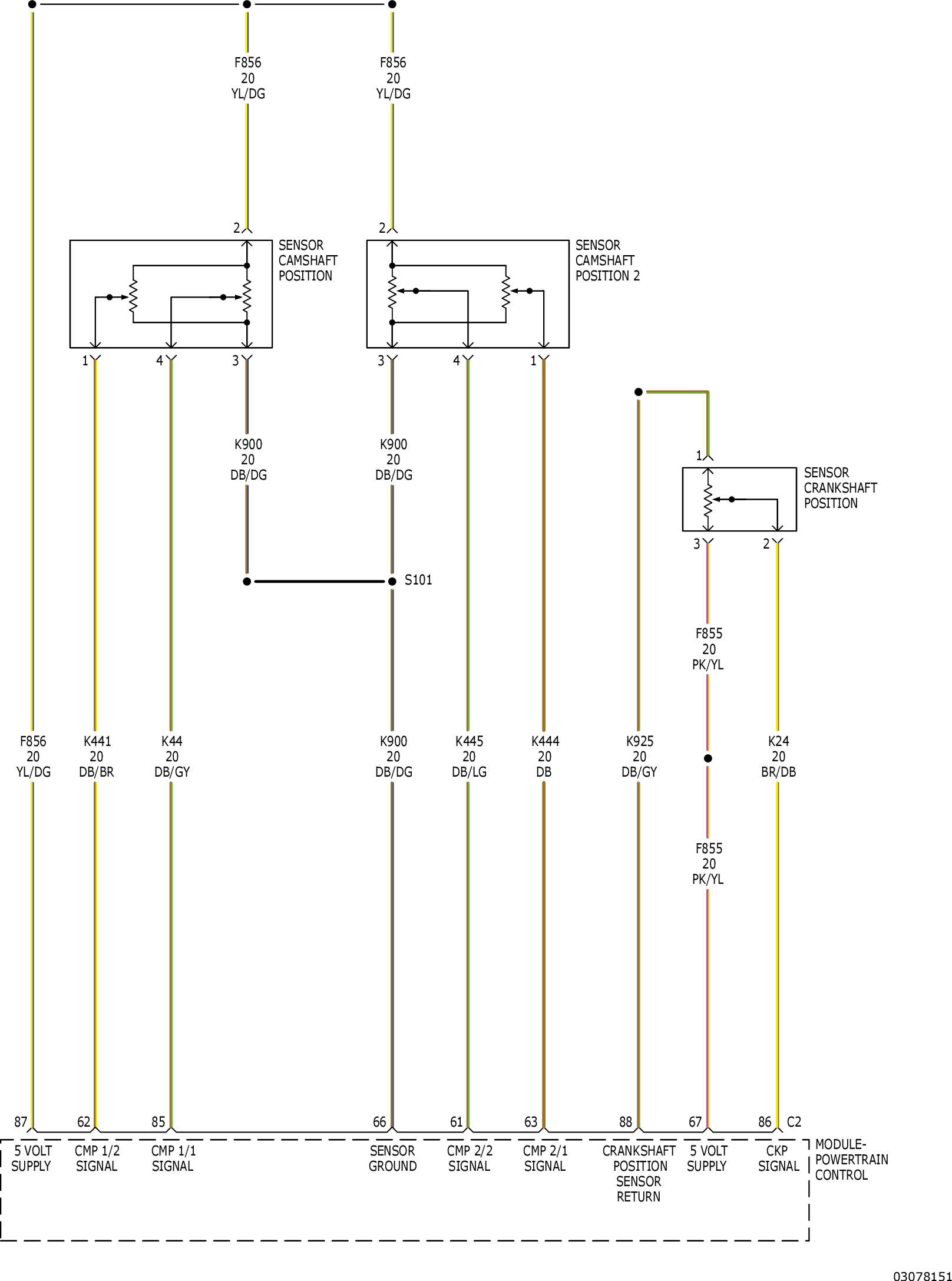

Fig 1: Crankshaft Position System Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
