Module-Fuel Pump C2 (D6602B)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 6189-0031

Part Description: 090 SEALED 2-WAY Female CONNECTOR

Connector No: D6602B

Option: Standard

Repair Kit Part Number: 68018952AA

Cavity Count: 2

Fig 1: Module-Fuel Pump C2 Connector End View

Courtesy of CHRYSLER

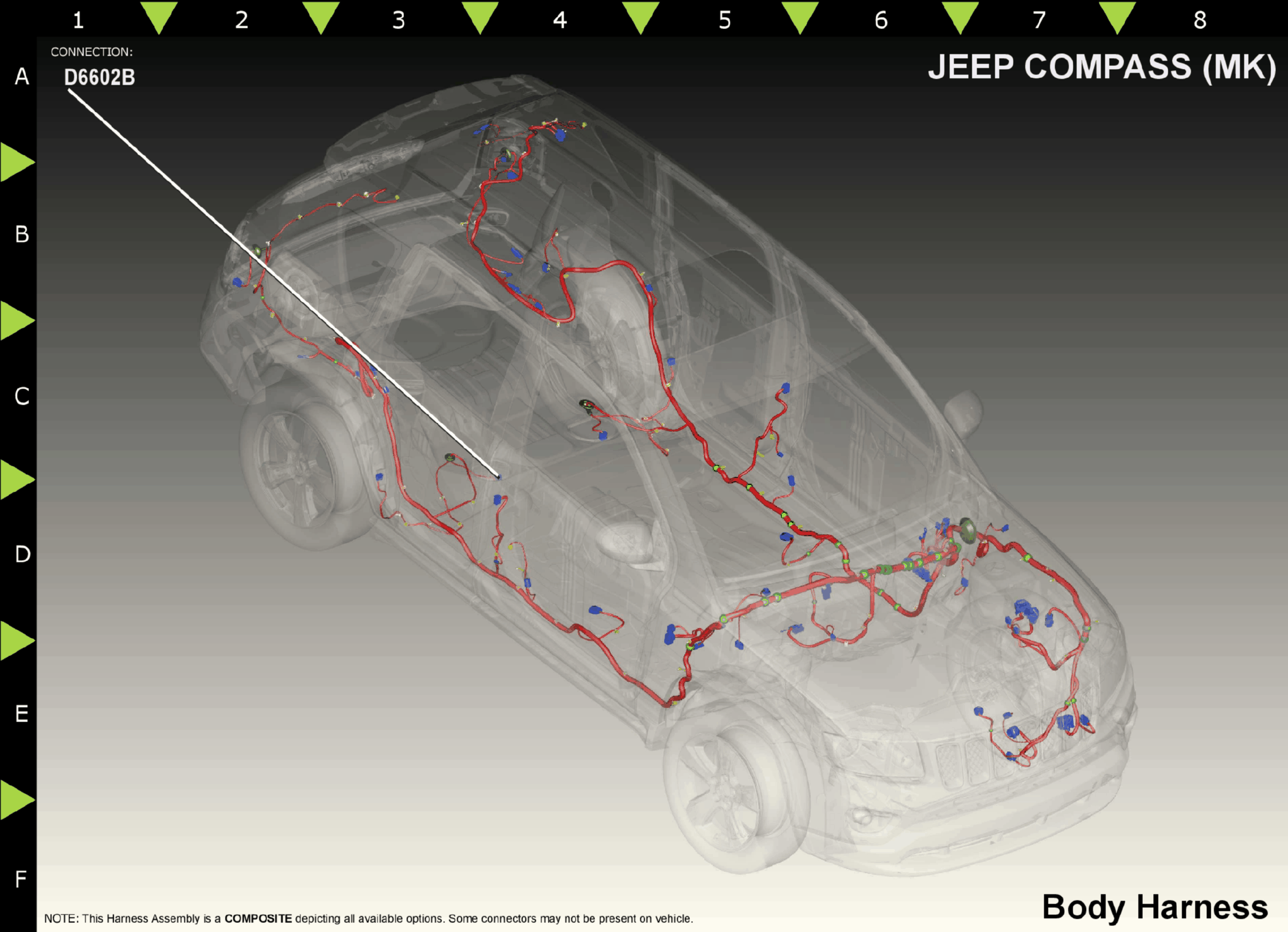

Fig 2: Module-Fuel Pump C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

BK/GY

GROUND

N/A

DB/BK

FUEL LEVEL SIGNAL 2

N/A

Z906

BK/GY

GROUND

N/A

DB/BK

FUEL LEVEL SIGNAL 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
