Power Distribution Center (PDC) (Fuse Block, Gas) Layout

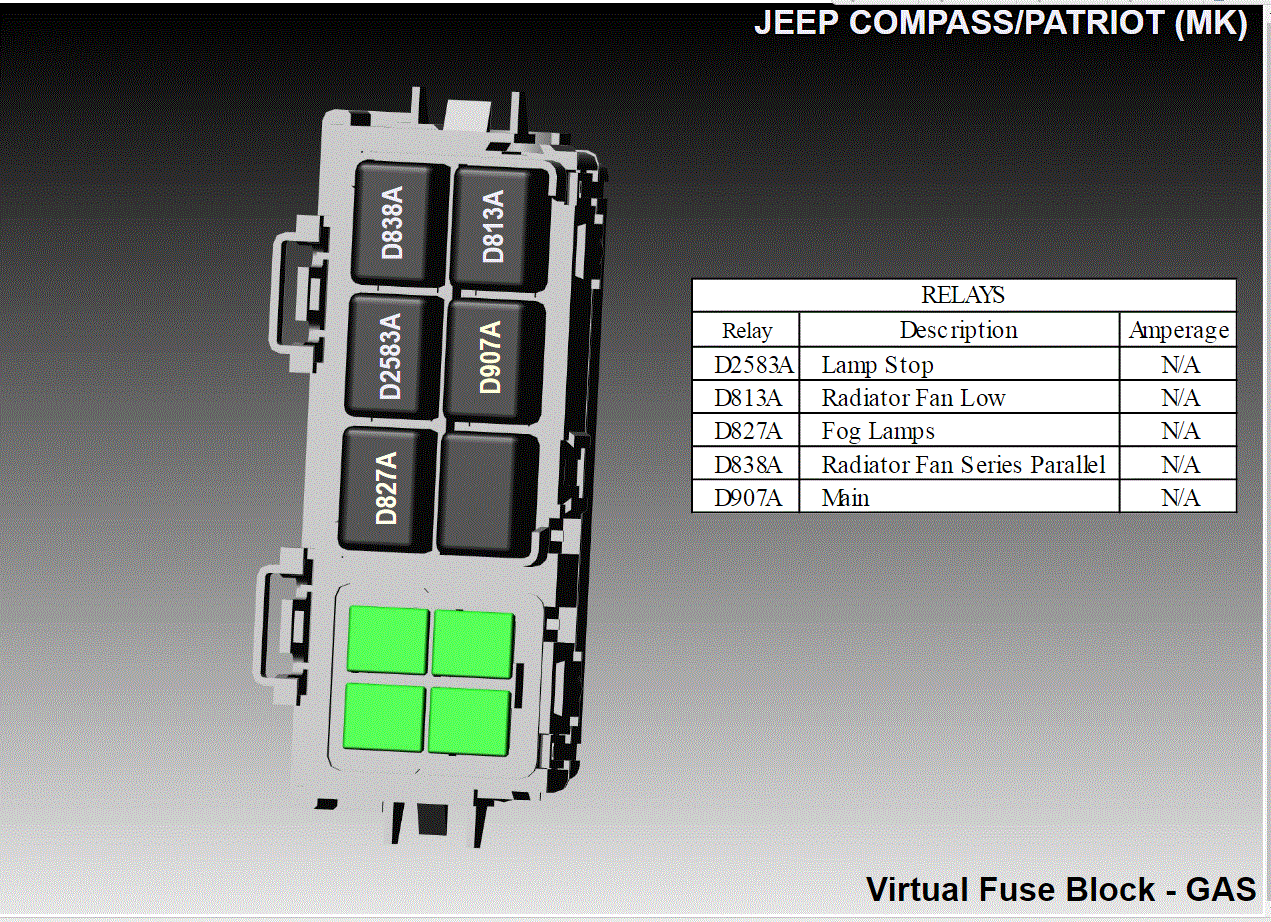

Fig 1: PDC (Fuse Block, Gas) Layout

G00565797

Courtesy of CHRYSLER
