Module-Glow Plug (D3913A)

Harness-Family: Injector

Color: ~~

Gender: FEMALE

Part Number: 4357112

Part Description: Not Available

Connector No: D3913A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

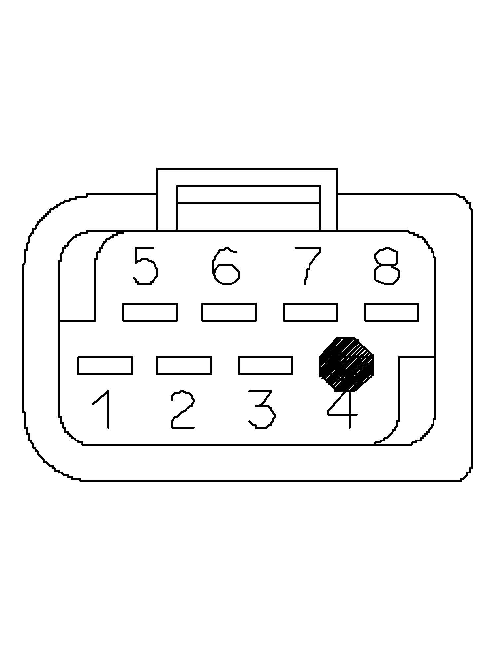

Fig 1: Module-Glow Plug Connector End View

GCWD1024540

Courtesy of CHRYSLER

Fig 2: Module-Glow Plug Component Location

GCWD1131367

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

A1

D500

LB

20

LIN BUS

N/A

A2

F343

RD/LG

18

FUSED ASD RELAY OUTPUT

N/A

A3

Z901

BR

14

GROUND

N/A

A5

A202

BK/YL

14

FUSED B(+)

N/A

A6

A203

BK/RD

14

FUSED B(+)

N/A

A7

A204

BK/VT

14

FUSED B(+)

N/A

A8

A208

BK/LB

14

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
