Module-Powertrain Control C1 (Gas) (D3838A)

Harness-Family: Engine_Compartment

Color: GRAY

Gender: FEMALE

Part Number: 1924940-3

Part Description: Not Available

Connector No: D3838A

Option: GAS

Repair Kit Part Number: Not Available

Cavity Count: 96

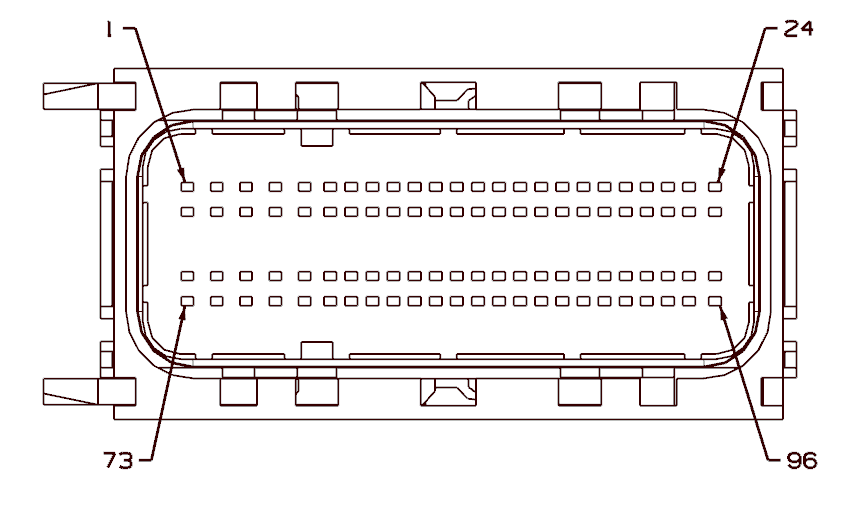

Fig 1: Module-Powertrain Control C1 Connector End View (Gas)

Courtesy of CHRYSLER

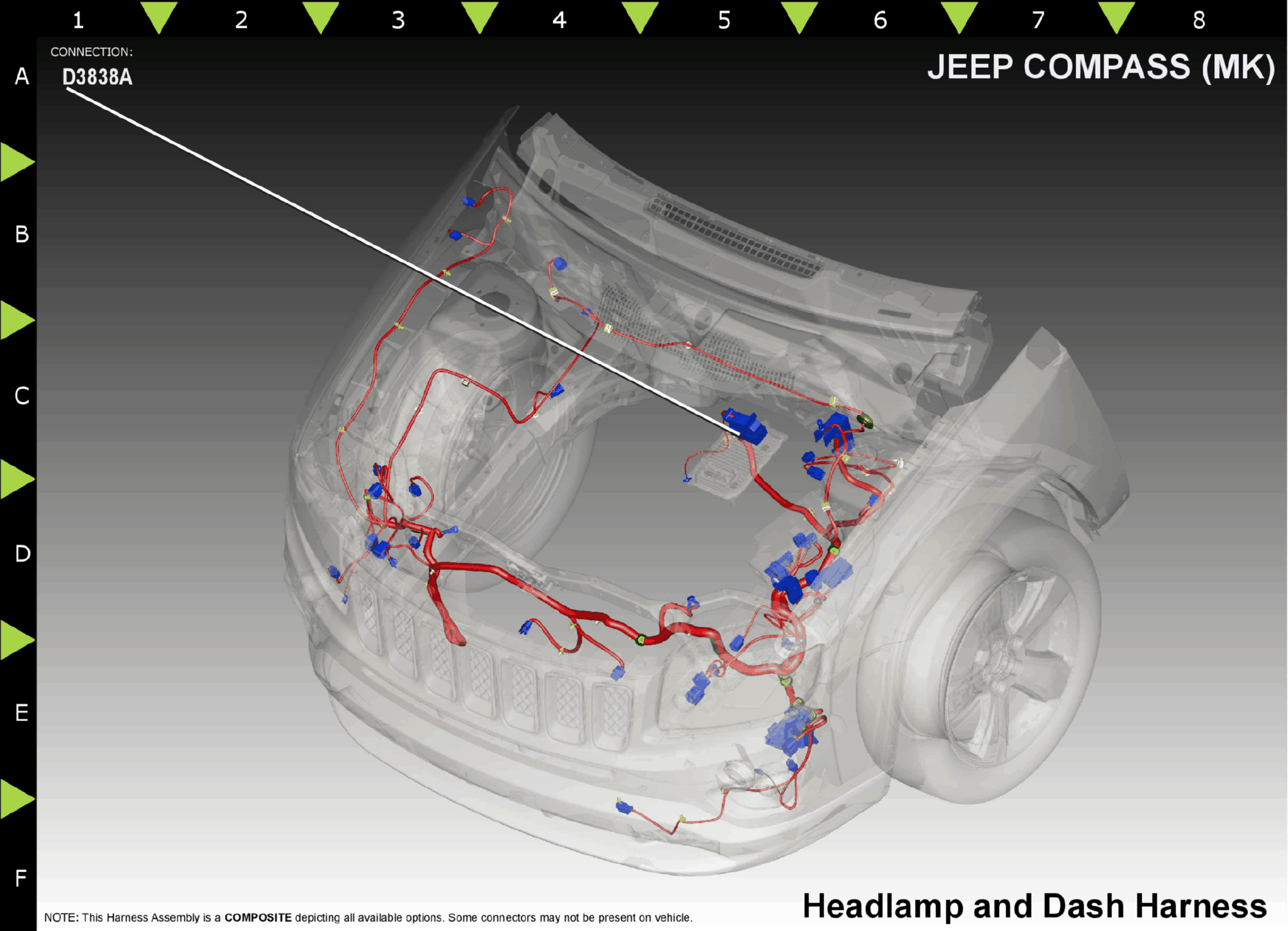

Fig 2: Module-Powertrain Control C1 Component Location (Gas)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B16

LB/DG

BRAKE SIGNAL 2

N/A

V72

OR/VT

S/C SIGNAL 2

N/A

V71

VT/OR

S/C SIGNAL 1

N/A

K915

BR/WT

SENSOR GROUND

N/A

F202

PK/GY

IGNITION RUN/START CONTROL OUTPUT

N/A

DB/OR

FUEL TANK PRESSURE SIGNAL

N/A

D64

WT/LB

CAN C (-)

N/A

B15

DG/WT

BRAKE SIGNAL 1

N/A

V937

VT/LG

S/C SWITCH GROUND

N/A

K856

BR/YL

5 VOLT SUPPLY

N/A

Z902

BK/YL

GROUND

N/A

Z932

BK/YL

GROUND

N/A

Z902

BK/YL

GROUND

N/A

Z932

BK/YL

GROUND

N/A

K975

BR/TN

S/C SWITCH GROUND

N/A

D65

WT/BK

CAN C (+)

N/A

K70

DB/BR

EVAP PURGE SOL SIGNAL

N/A

K400

BR/VT

APP SENSOR GROUND 2

N/A

K167

BR/YL

APP SENSOR GROUND 1

N/A

K854

VT/BR

5 VOLT SUPPLY

N/A

K107

VT/WT

ESM SIGNAL

N/A

Z902

BK/YL

GROUND

N/A

Z932

BK/YL

GROUND

N/A

F342

BR/WT

ASD CONTROL OUTPUT

N/A

F342

BR/WT

ASD CONTROL OUTPUT

N/A

F342

BR/WT

ASD CONTROL OUTPUT

N/A

K51

BR/WT

ASD RELAY CONTROL

N/A

T752

DG/OR

STARTER RELAY CONTROL

N/A

K31

FUEL PUMP CONTROL

N/A

T120

YL/OR

MTX-CLUTCH INTERLOCK / ATX-PARK NEUTRAL

N/A

K29

WT/BR

APP SIGNAL 2

N/A

K23

BR/OR

APP SIGNAL 1

N/A

K852

BR/VT

5 VOLT SUPPLY

N/A

K52

DB/WT

EVAP PURGE CONTROL

N/A

A931

RD/WT

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
