International Control And Display Symbols: Notes
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Chrysler LLC uses international symbols to identify various systems on the vehicle.
The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle.
INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | 115-Volt Power Inverter | 11 | Side Airbag |
| 2 | USB Connector | 12 | Seat Belt |
| 3 | Lighter | 13 | Airbag |
| 4 | Fuel Fill Side | 14 | Supplemental Restraint System |
| 5 | Spare Tire Winch | 15 | Power Steering Fluid |
| 6 | Fuse | 16 | See Owner's Manual |
| 7 | Key Activate (Power Outlet) | 17 | See Appropriate Service Information Section |
| 8 | Warning | 18 | Emergency Release Handle |
| 9 | Child Seat Tether Anchor | 19 | Jack/Jack Tools Location |
| 10 | Lower Anchors and Tether for Children (latch) | - | - |

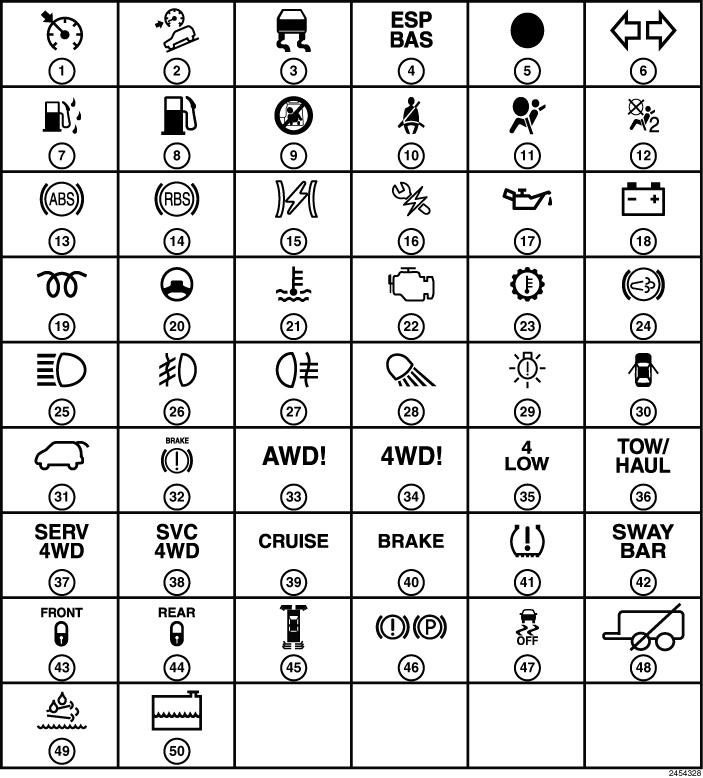

INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | Electronic Speed Control | 23 | Transmission Oil Temperature Light |
| 2 | Hill Descent Control | 24 | Diesel Exhaust Brake |
| 3 | Traction Control | 25 | High Beam |
| 4 | Electronic Stability Program/Brake System Assist System | 26 | Front Fog Light |
| 5 | Security Indicator | 27 | Rear Fog Light |
| 6 | Turn Signals | 28 | Cargo Lamp |
| 7 | Water In Fuel | 29 | Exterior Bulb Failure |
| 8 | Low Fuel | 30 | Door Ajar |
| 9 | Side Airbag | 31 | Liftgate Open |
| 10 | Seat Belt Reminder | 32 | Brake System Warning Parking Brake |
| 11 | Airbag Warning Light | 33 | All Wheel Drive |
| 12 | Passenger Airbag Off | 34 | Four Wheel Drive |
| 13 | Failure Of Anti-Lock Braking System | 35 | Four Wheel Drive Low |
| 14 | HEV Brake Regenerative Light | 36 | Tow/Haul |
| 15 | Electronic Throttle Control | 37 | Service Four Wheel Drive |
| 16 | HEV Service Light | 38 | Service Four Wheel Drive |
| 17 | Engine Oil | 39 | Cruise Indicator |
| 18 | Battery Charging | 40 | Brake System Warning Parking Brake |
| 19 | Glow Plug/Intake Air Heated | 41 | Tire Pressure Monitor |
| 20 | Power Steering Fluid | 42 | Sway Bar Disconnect Indicator |
| 21 | Engine Coolant Temperature | 43 | Front Axle Lock |
| 22 | Malfunction Indicator Light | 44 | Rear Axle Lock |
INTERNATIONAL CONTROL SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|---|---|
| 1 | Rear Window Wiper | 26 | Passenger Air Bag Off | 51 | Door Ajar |
| 2 | Rear Window Intermittent Wiper | 27 | Electronic Speed Control | 52 | Liftgate Release |
| 3 | Rear Window Washer | 28 | Cruise Indicator | 53 | Sliding Door |
| 4 | Rear Window Defrost | 29 | Hill Descent Control | 54 | Sliding Door |
| 5 | Heated Mirror | 30 | Park Assist Off | 55 | Convertible Top Down |
| 6 | Turn Signals | 31 | Electronic Stability Program/Brake System Assist System | 56 | Convertible Top Up |
| 7 | Adjustable Pedals | 32 | Park Brake Release | 57 | Door Lock |
| 8 | Horn | 33 | Adjustable Headlights | 58 | Window Lift |
| 9 | Windshield Wiper Intermittent | 34 | Low Beam | 59 | Convertible 4 Window Down |
| 10 | Windshield Washer | 35 | Front Fog Light | 60 | Window Lock |
| 11 | Windshield Washer Fluid Level | 36 | Rear Fog Light | 61 | Power Rear Window |
| 12 | Windshield Electrically Heated | 37 | Cargo Lamp | 62 | Voice Recognition Button |
| 13 | Windshield Defrost | 38 | Hazard Lights | 63 | Uconnect™ Button |
| 14 | Windshield Wiper And Washer | 39 | 115-Volt Power Inverter | 64 | SwayBar Disconnect |
| 15 | Ventilating Fan | 40 | Key Activate (Power Outlet) | 65 | All Wheel Drive |
| 16 | Air Conditioning | 41 | Exterior Bulb Failure | 66 | Four Wheel Drive |
| 17 | Upper Air Outlet | 42 | Master Lighting Switch | 67 | Two Wheel Drive |
| 18 | Upper And Lower Air Outlet | 43 | Dome Light | 68 | Four Wheel Drive Low |
| 19 | Lower Air Outlet | 44 | Park Lights | 69 | Four Wheel Drive Lock |
| 20 | Defrost And Lower Air Outlet | 45 | Instrument Panel Illumination | 70 | Four Wheel Drive Auto |
| 21 | Heated Seat Low | 46 | Electronic Stability Program Off | 71 | Front Axle Lock |
| 22 | Heated Seat High | 47 | Diesel Exhaust Brake | 72 | Rear Axle Lock |
| 23 | Ventilated Seat | 48 | Overdrive Off | 73 | EVIC Menu |
| 24 | Recirculation | 49 | Hood Release | 74 | Navigation Button |
| 25 | Heated Steering Wheel | 50 | Trunk/Deck Release | 75 | Step |
| 76 | Reset | 77 | Axle Lock Button | 78 | Traction Control Off |
