P2107-Electronic Throttle Control Module Processor: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

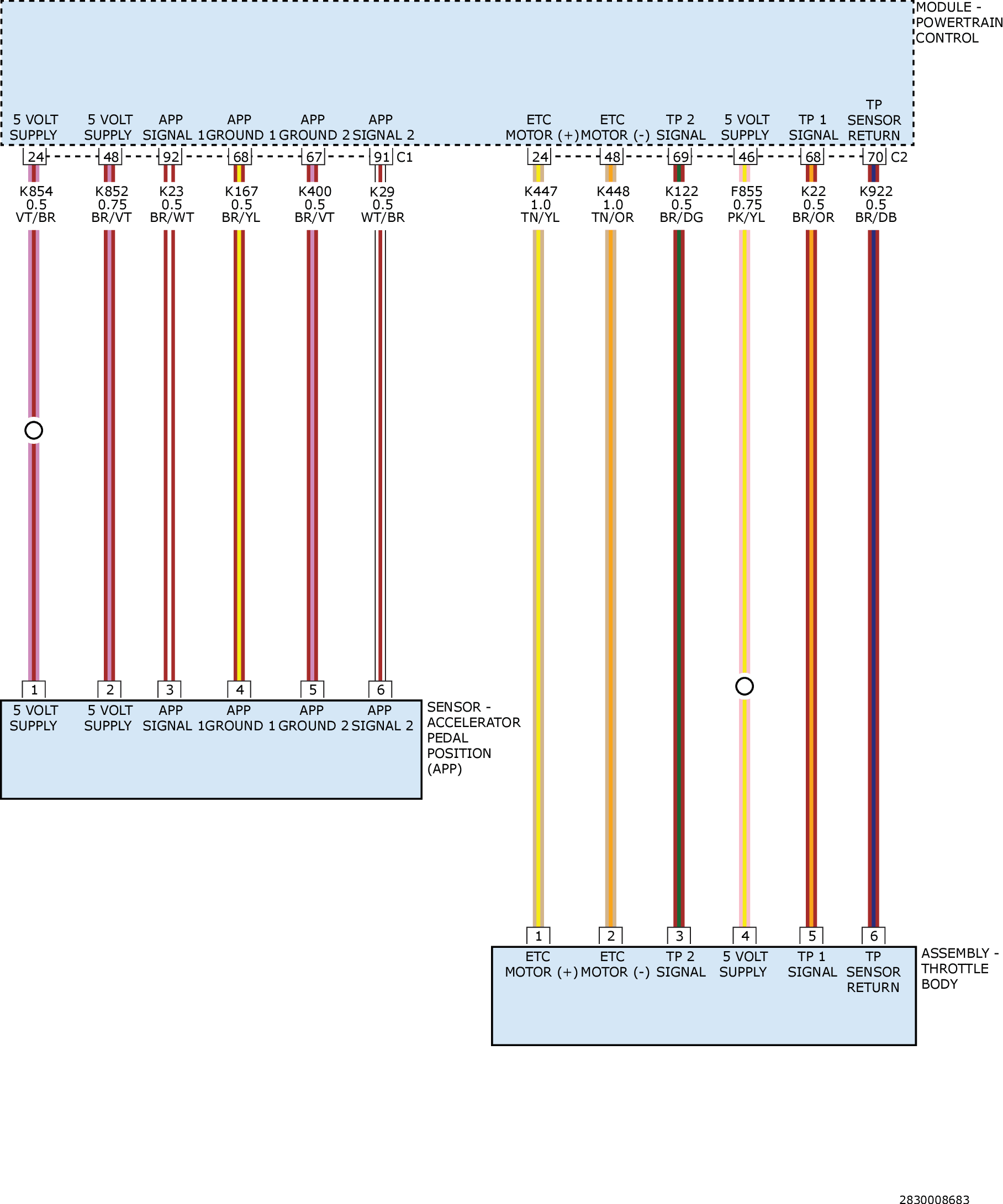

Fig 1: Accelerator Pedal Position Sensor & Throttle Body Assembly Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
