Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 2098963-1

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Occupant Restraint Controller C1 Connector End View

Courtesy of CHRYSLER

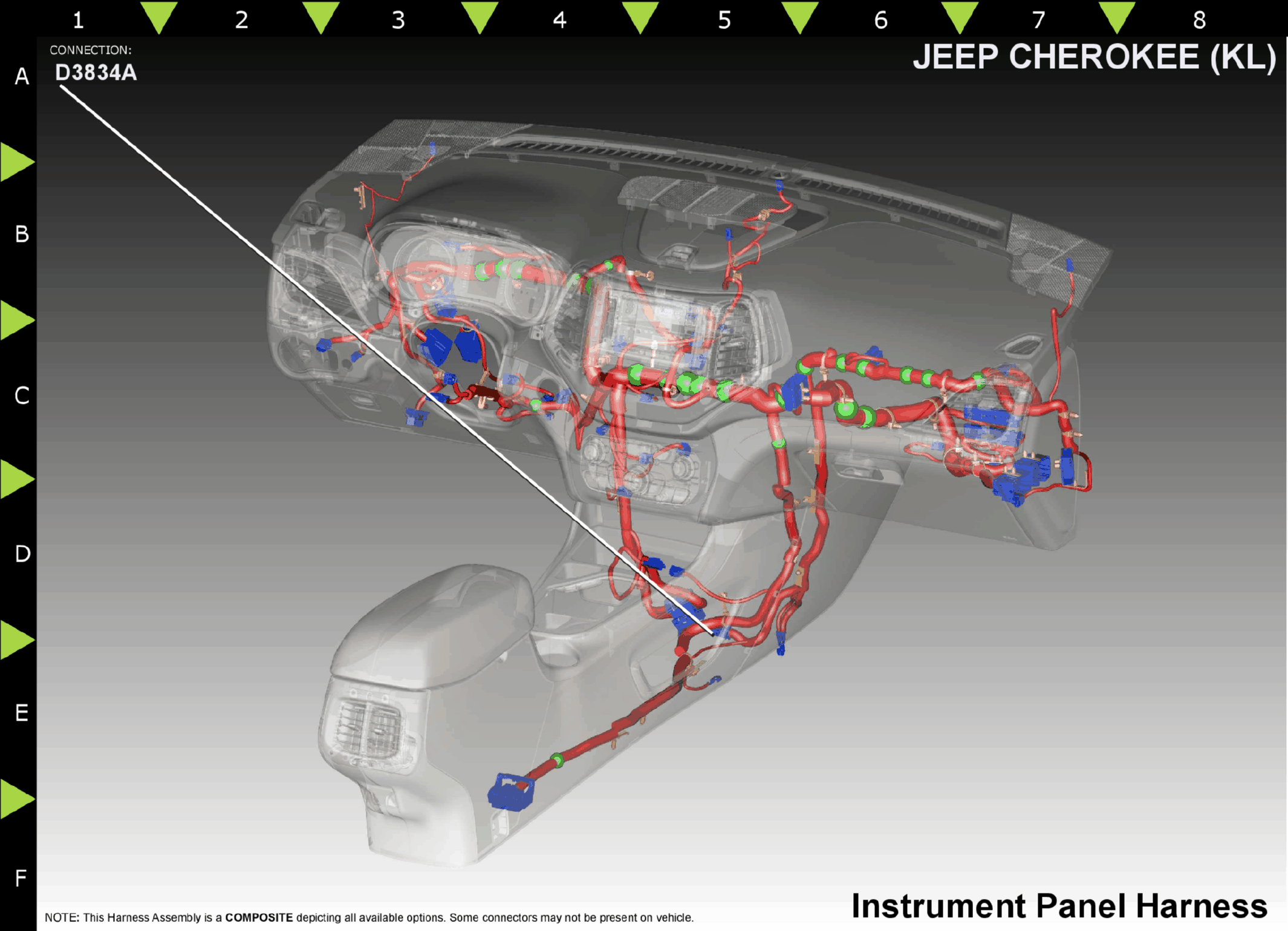

Fig 2: Module-Occupant Restraint Controller C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R12

0.5

PASSENGER KNEE BLOCKER SQUIB LINE 1

N/A

0.5

DRIVER KNEE BLOCKER SQUIB LINE 2

N/A

R44

LB/OR

0.5

PASSENGER SQUIB 1 LINE 1

N/A

R43

LG/BR

0.5

DRIVER SQUIB 1 LINE 2

N/A

R64

LB/WT

0.5

PASSENGER SQUIB 2 LINE 1

N/A

R61

LG/VT

0.5

DRIVER SQUIB 2 LINE 2

N/A

R68

LB/YL

0.5

PASSENGER SQUIB 3 LINE 1

N/A

R67

LG/GY

0.5

DRIVER SQUIB 3 LINE 2

N/A

F945

PK/LG

0.5

IGNITION RUN/START CONTROL OUTPUT

N/A

D11

YL/DB

0.5

CAN C (+)

N/A

R80

VT/LB

0.75

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

R82

WT/LB

0.75

RIGHT FRONT IMPACT SENSOR GROUND

N/A

R41

LB/VT

0.5

AIRBAG DEPLOYMENT SIGNAL

N/A

R81

LB/WT

0.75

LEFT FRONT IMPACT SENSOR GROUND

N/A

R79

LB/VT

0.75

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

F929

PK/YL

0.5

FUSED IGNITION SWITCH OUTPUT (RUN)

N/A

D12

0.5

CAN C (-)

N/A

R10

YL/LB

0.5

PASSENGER KNEE BLOCKER SQUIB LINE 2

N/A

R11

LB/DB

0.5

DRIVER KNEE BLOCKER SQUIB LINE 1

N/A

R42

LB/BR

0.5

PASSENGER SQUIB 1 LINE 2

N/A

R45

LG/OR

0.5

DRIVER SQUIB 1 LINE 1

N/A

R62

LB/VT

0.5

PASSENGER SQUIB 2 LINE 2

N/A

R63

LG/WT

0.5

DRIVER SQUIB 2 LINE 1

N/A

R66

LB/GY

0.5

PASSENGER SQUIB 3 LINE 2

N/A

R69

LG/YL

0.5

DRIVER SQUIB 3 LINE 1

N/A

Z913

0.75

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
