Module-Radiator Fan (D3842A)

Harness-Family: ENGINE

Color: BLACK

Gender: FEMALE

Part Number: 7287-1403-30

Part Description: Not Available

Connector No: D3842A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Module-Radiator Fan Connector End View

GCWD1087696

Courtesy of CHRYSLER

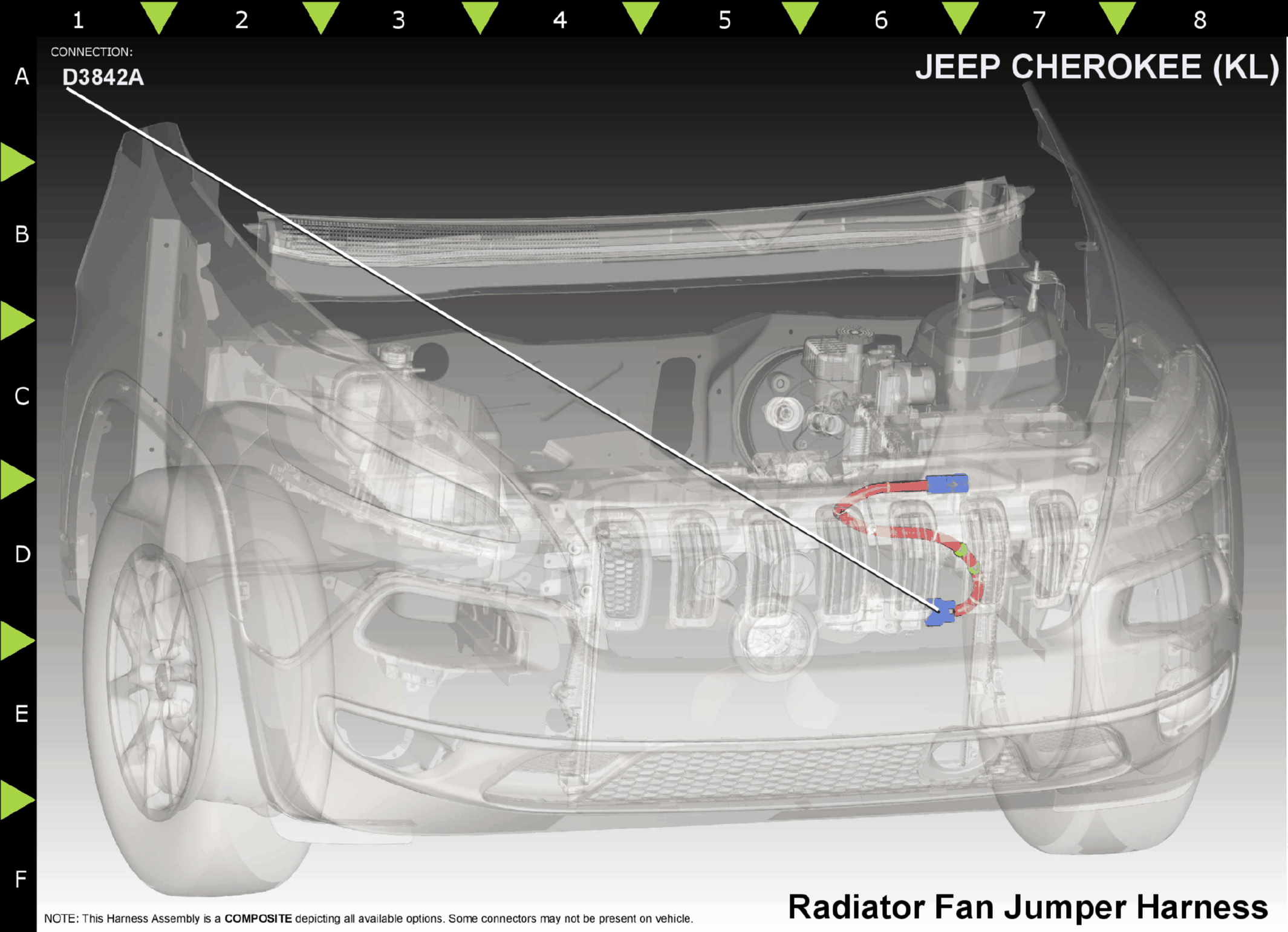

Fig 2: Module-Radiator Fan Component Location

GCWD1079073

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A958

RD

16

FUSED B(+)

N/A

2

Z903

BK

8.0

GROUND

N/A

3

N29

DB/LB

0.75

RADIATOR FAN ENABLE SIGNAL

N/A

4

K173

BR/VT

0.75

RADIATOR FAN CONTROL SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
