Module-Steering Column Control C3 (D3816C)

Harness-Family: StrgWheelJumper

Color: BLACK

Gender: FEMALE

Part Number: ~~

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C3 Connector End View

Courtesy of CHRYSLER

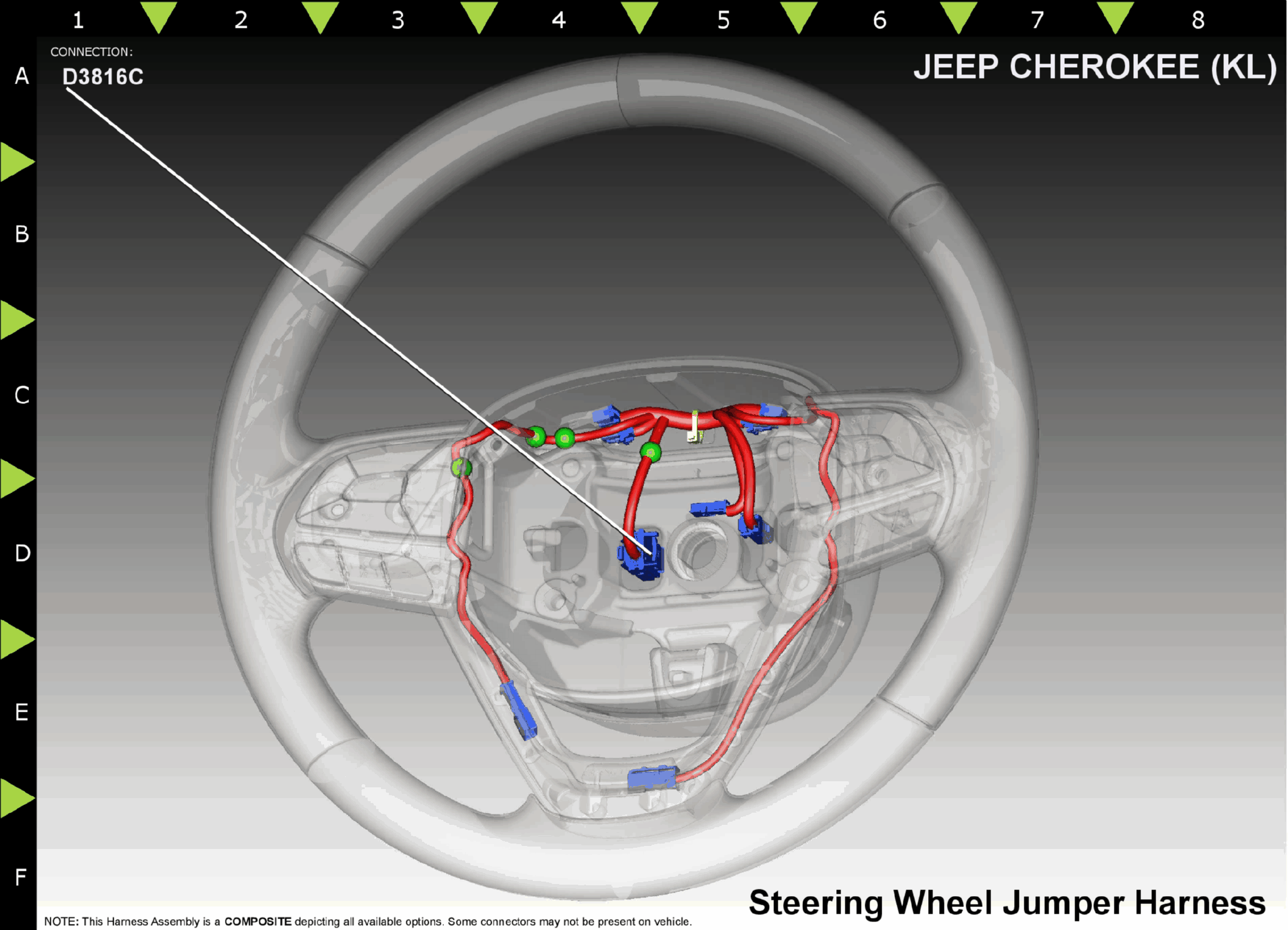

Fig 2: Module-Steering Column Control C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A92

FUSED B(+)

N/A

HORN SWITCH SENSE

N/A

D592

LIN BUS

N/A

Z92

GROUND

N/A

D594

LIN BUS

N/A

⁽¹⁾	Pins not listed are not used for this connector
