Module-Steering Column Control C8 (D3816H)

Harness-Family: Airbag

Color: BLACK

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D3816H

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C8 Connector End View

Courtesy of CHRYSLER

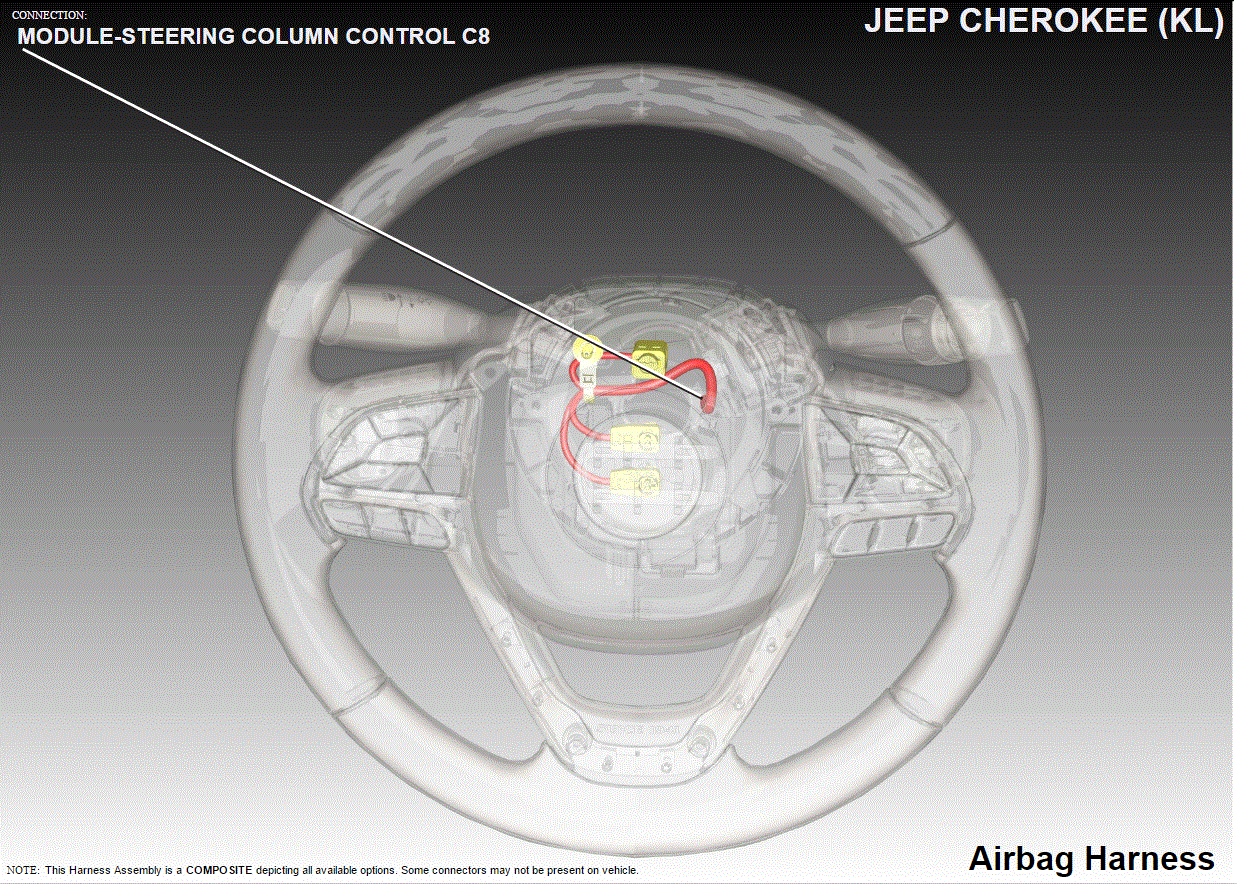

Fig 2: Module-Steering Column Control C8 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R43

LG/BR

DRIVER SQUIB 1 LINE 2

N/A

R45

LG/OR

DRIVER SQUIB 1 LINE 1

N/A

R61

LG/VT

DRIVER SQUIB 2 LINE 2

N/A

R63

DB/WT

DRIVER SQUIB 2 LINE 1

N/A

R67

GY/OR

DRIVER SQUIB 3 LINE 2

N/A

R69

LG/YL

DRIVER SQUIB 3 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
