Capacitor, Ignition: Removal: 2.4L

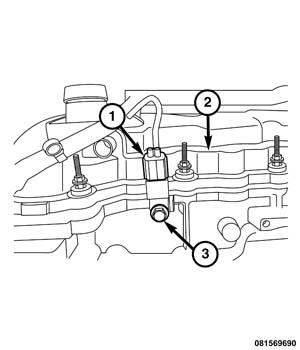

Fig 1: Connector, Ignition Capacitor & Mounting Bolt
GC0155984Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable.
  2. Remove electrical connector (1).
  3. Remove mounting bolt (3) and ignition capacitor (1) from the front of the cylinder head.
