Fan, Cooling: Installation: Diesel

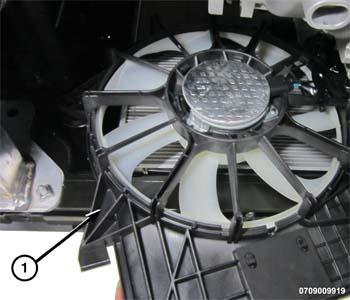

Fig 1: Cooling Fan Assembly

Courtesy of CHRYSLER GROUP, LLC

Guide the cooling fan into position onto the radiator while clearing the upper radiator hose.
Once into position, insert the lower tabs into the retainers.
Install the bolts (1). Tighten to 8 N.m (71 in. lbs.).
Lower the vehicle.

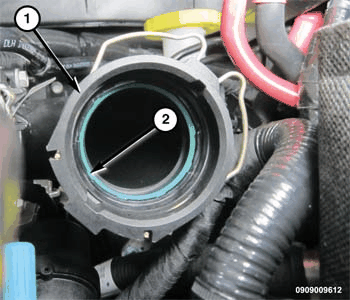

Fig 2: O-Ring & EGR Air Flow Control Valve Inlet Tube
Courtesy of CHRYSLER GROUP, LLC
Install a new O-ring seal (2) onto the EGR air flow control valve inlet tube (1).

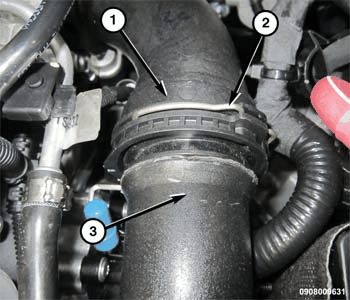

Fig 3: EGR Air Flow Control Valve Inlet Tube, CAC Tube Wire Retainer & CAC Hose
Courtesy of CHRYSLER GROUP, LLC
Connect the Charge Air Cooler (CAC) hose (3) to the EGR air flow control valve inlet tube (1).
Lock CAC tube wire retainer (2).

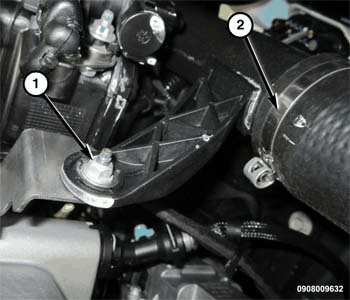

Fig 4: CAC Tube-To-Engine Nut
Courtesy of CHRYSLER GROUP, LLC
Raise the vehicle.
Install the nut (1) securing CAC tube (2) to engine and tighten to 9 N.m (80 in. lbs.).

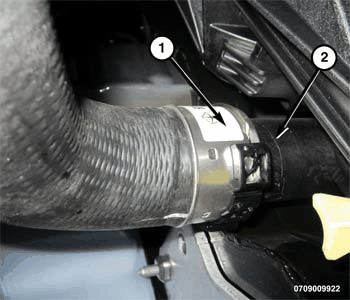

Fig 5: Left Charge Air Cooler (CAC) & Hose
Courtesy of CHRYSLER GROUP, LLC
Connect the left CAC hose (1) to cooler (2).

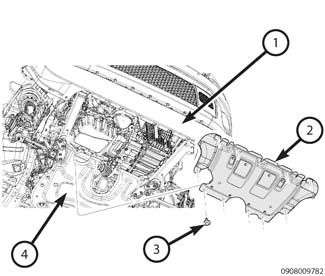

Fig 6: Removing/Installing Starter
Courtesy of CHRYSLER GROUP, LLC
Install the belly pan (2) and securely tighten bolts (2).
Lower the vehicle.

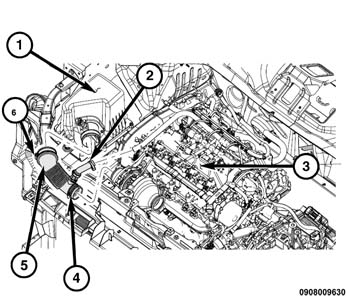

Fig 7: Turbocharger Inlet Hose & Clamp
Courtesy of CHRYSLER GROUP, LLC
Install the turbocharger inlet tube (5) and securely tighten clamps (4, 6).

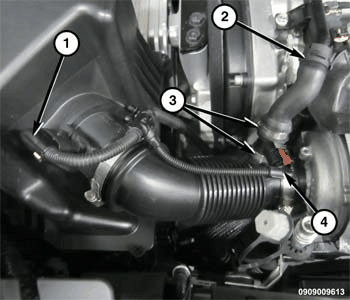

Fig 8: MAF Sensor Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the Closed Crankcase Ventilation (CCV) heater wire harness connector (4).
Install the breather hose (2) onto breather tube.

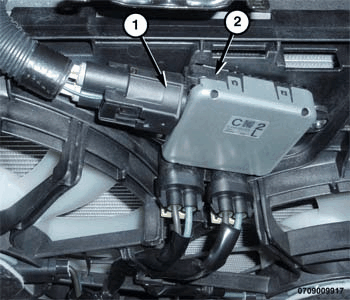

Fig 9: Cooling Fan Module & Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the cooling fan wiring harness connector (1).

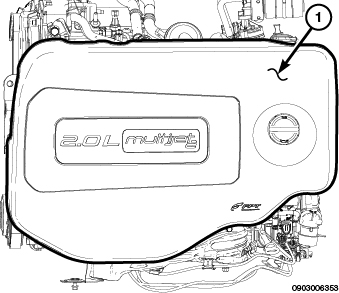

Fig 10: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
