Radiator, Engine Cooling: Removal: 3.2L

  1. Disconnect the battery negative cable.
  2. Remove the engine cover.
  3. Raise the vehicle.

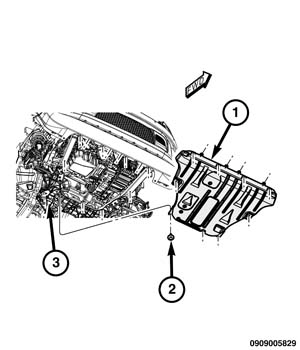

    Fig 1: Removing/Installing Belly Pans
    GC0159327Courtesy of CHRYSLER GROUP, LLC
  4. Remove the lower belly pan.
  5. Separate the lower radiator hose at the radiator.
  6. Drain the cooling system. Refer to STANDARD PROCEDURE .

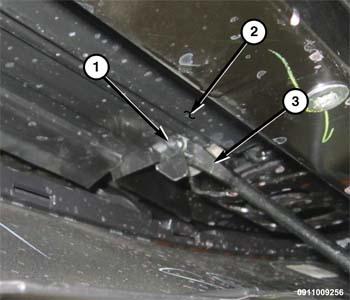

    Fig 2: Push Pins, Side Close Out Deflector & Lower Deflector
    GC0159495Courtesy of CHRYSLER GROUP, LLC
  7. Separate the lower air deflector.
  8. Remove the engine cover.

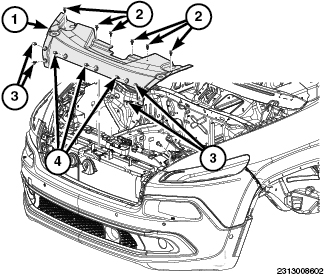

    Fig 3: Upper Close Out Panel Cover Components
    GC0160073Courtesy of CHRYSLER GROUP, LLC
  9. Remove the upper close out panel cover (1).

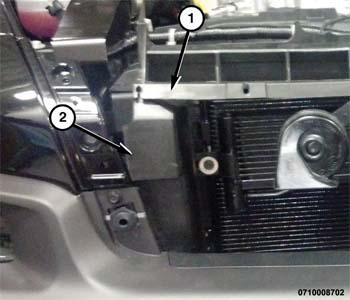

    Fig 4: Side Air Deflectors & Upper Radiator Closeout Panel
    GC0160015Courtesy of CHRYSLER GROUP, LLC
  10. Separate the side air deflectors from the upper radiator closeout panel.

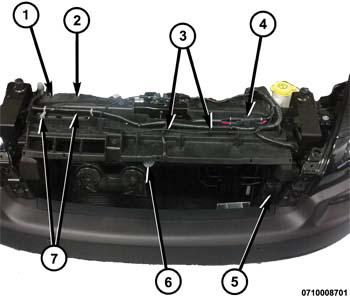

    Fig 5: Removing/Installing Upper Air Deflector
    GC0159459Courtesy of CHRYSLER GROUP, LLC
  11. Disconnect the cooling fan module harness connector (4).
  12. Disconnect the ambient air temperature sensor (5).
  13. Disconnect the horn electrical connectors (6).
  14. Remove the hood release cable (3) from the air deflector.
  15. Remove the wiring harness (7) from the air deflector.
  16. Remove the upper air deflector (1).

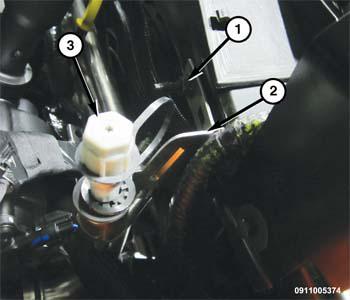

    Fig 6: Removing/Installing A/C Fill Port Support Bracket
    GC0159561Courtesy of CHRYSLER GROUP, LLC
  17. Remove the A/C fill port support bracket (2) and position aside.

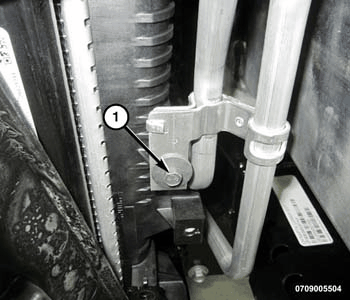

    Fig 7: Removing/Installing Transmission Cooler Line Support Bracket Bolt
    GC0159379Courtesy of CHRYSLER GROUP, LLC
  18. Separate the transmission cooler line support brace bolt (1).

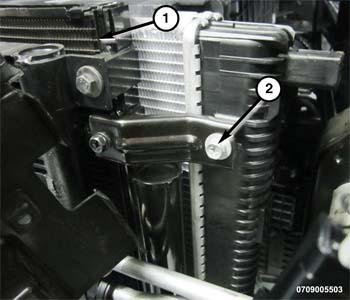

    Fig 8: Radiator & Bolt
    GC0159391Courtesy of CHRYSLER GROUP, LLC
  19. Separate the condenser from the radiator (1).

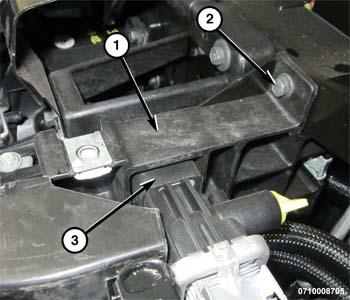

    Fig 9: Removing/Installing Upper Radiator Mounts
    GC0159343Courtesy of CHRYSLER GROUP, LLC
  20. Separate the upper radiator hose from the upper cross over pipe.
  21. Remove the upper radiator mounts (1).

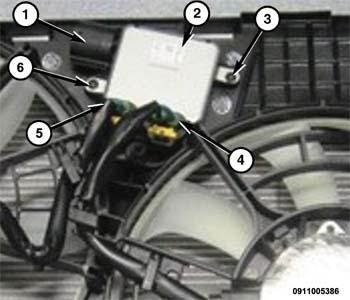

    Fig 10: Removing/Installing Fan Assembly
    GC0159755Courtesy of CHRYSLER GROUP, LLC
  22. Disconnect the electrical connector (1) at the cooling fan module (2).
  23. Remove the radiator from the vehicle.

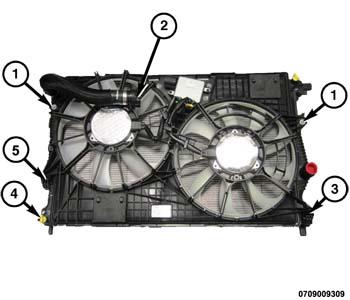

    Fig 11: Fan Assembly & Components
    GC0160159Courtesy of CHRYSLER GROUP, LLC
  24. Remove the upper radiator hose (2).
  25. Remove the radiator fan assembly.
