Heater, Engine Block: Installation: 2.4L

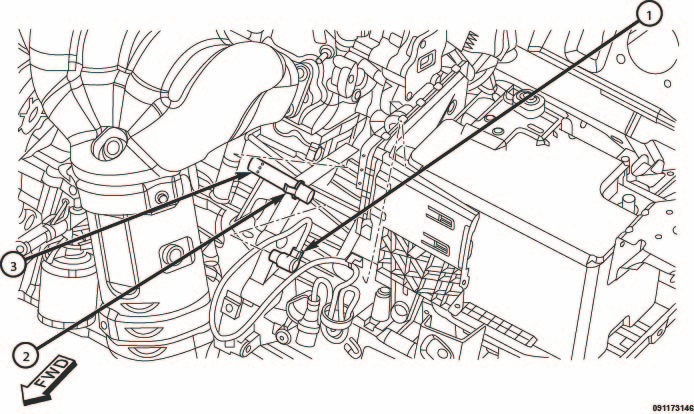

Fig 1: Removing/Installing Engine Block Heater
GC0156329Courtesy of CHRYSLER GROUP, LLC
  1. Insert the block heater (3) into the block bore.
  2. Push the heater to the left until the tab (2) catches onto the block.
  3. Plug the block heater cord (1) into the heater.
  4. Install the engine cover.
