Heater, Engine Block: Installation: 3.2L

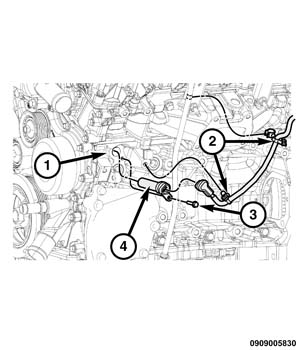

Fig 1: Removing/Installing Engine Block Heater
GC0159337Courtesy of CHRYSLER GROUP, LLC
  1. Clean block core hole (1) and heater seat.
  2. Insert heater block (4) assembly.
  3. With block heater seated, tighten bolt (3) to 12 N.m (106 in. lbs.) to assure a positive seal.
  4. Install power cord plug to block heater (2).

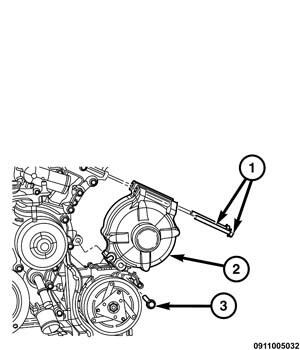

    Fig 2: Removing/Installing Generator
    GC0159375Courtesy of CHRYSLER GROUP, LLC
  5. Install the generator (2). Refer to GENERATOR, INSTALLATION .
