Radiator, Engine Cooling: Installation: 3.2L

Fig 1: Fan Assembly & Components
GC0160159Courtesy of CHRYSLER GROUP, LLC
  1. Install the cooling fan onto the radiator. Tighten to bolts (1) 9 N.m (80 in. lbs.).
  2. Install the upper radiator hose (2).

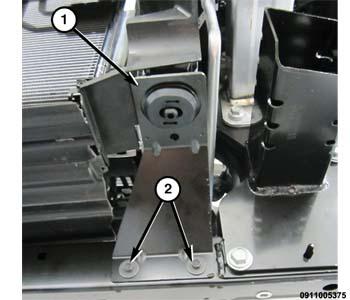

    Fig 2: Lower Mounting Isolator & Bolts
    GC0159435Courtesy of CHRYSLER GROUP, LLC
  3. Position the radiator into the lower mounting (1) isolators on the radiator lower support.
    Fig 3: Radiator & Bolt
    GC0159391Courtesy of CHRYSLER GROUP, LLC
  4. Install the condenser to the radiator (1). Tighten the bolts (2) to 8 N.m (70 in. lbs.).
    Fig 4: Removing/Installing Upper Radiator Mounts
    GC0159343Courtesy of CHRYSLER GROUP, LLC
  5. Install the upper radiator mounts (1). Tighten bolts to 9 N.m (80 in. lbs.).
  6. Install the upper radiator hose
  7. Connect the battery negative cable.
