Cooler, EGR: Installation: Installation

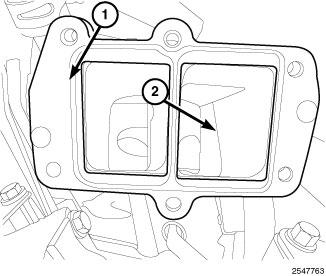

Fig 1: EGR Body & Gasket

Courtesy of CHRYSLER GROUP, LLC

Clean all gasket mating surfaces.
Install a new gasket (1) onto the EGR body (2).

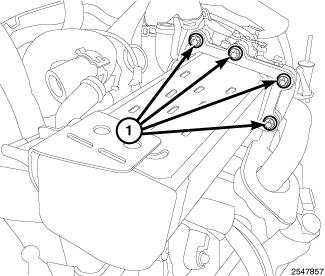

Fig 2: EGR Cooler & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install EGR cooler. Tighten bolts (1) to 9 N.m (80 in. lbs.).

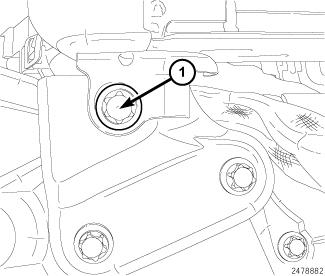

Fig 3: Lower EGR Cooler Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the lower EGR cooler bolt (1). Tighten to 9 N.m (80 in. lbs.).
Install the A/C connector mounting bracket.

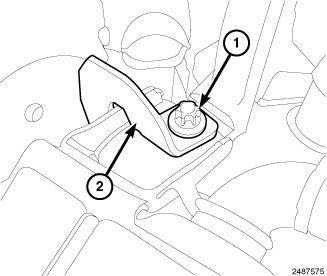

Fig 4: Upper EGR Cooler Bolt & Bracket
Courtesy of CHRYSLER GROUP, LLC
Install the upper EGR cooler bolt. Tighten bolt to 9 N.m (80 in. lbs.).

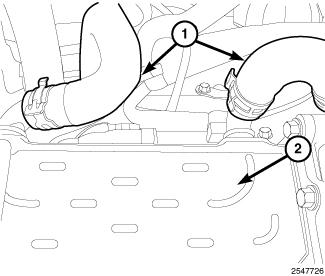

Fig 5: Identifying Coolant Hoses & EGR Cooler
Courtesy of CHRYSLER GROUP, LLC
Connect coolant hoses (1) to the EGR cooler (2).
Fill cooling system. Refer to STANDARD PROCEDURE .
Install engine cover.
Connect the negative battery cable.
