Charging System (Service Information): Generator: Removal: Removal

Fig 1: Air Cleaner Box And Snorkel

Courtesy of CHRYSLER GROUP, LLC

1. Rotate the two retaining clips (3) and remove the air cleaner fresh air duct (2).
2. Disconnect and isolate negative battery cable at battery.
   Fig 2: Lower Air Dam/Belly Pan

   Courtesy of CHRYSLER GROUP, LLC
3. Evacuate the A/C system. Refer to PLUMBING, STANDARD PROCEDURE .
4. Remove the right front wheel.
5. Remove the underbody air dam.
   Fig 3: Idler Pulley Location

   Courtesy of CHRYSLER GROUP, LLC
6. Remove the accessory drive splash shield.

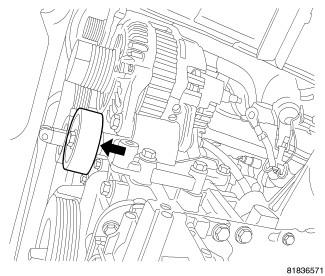

   Fig 4: Idler Pulley Removal/Install

   Courtesy of CHRYSLER GROUP, LLC
7. Position aside the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .
8. Remove the accessory drive idler pulley.
   Fig 5: A/C Compressor Relocation

   Courtesy of CHRYSLER GROUP, LLC
9. Remove the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL .
   Fig 6: Lower Mounting Bolt

   Courtesy of CHRYSLER GROUP, LLC
10. Loosen the lower mounting bolt.
    Fig 7: Field Connection

    Courtesy of CHRYSLER GROUP, LLC
11. Unplug field circuit from generator.
    Fig 8: Battery Cable Connection

    Courtesy of CHRYSLER GROUP, LLC
12. Remove the B+ terminal nut and wire.
    Fig 9: Upper Mounting Bolt

    Courtesy of CHRYSLER GROUP, LLC
13. Remove the upper mounting bolt.
14. Remove the generator lower mounting bolt.
    Fig 10: Generator Removal

    Courtesy of CHRYSLER GROUP, LLC
15. Slide the generator (1) down and out of vehicle.
