MODULE, Final Drive Control: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

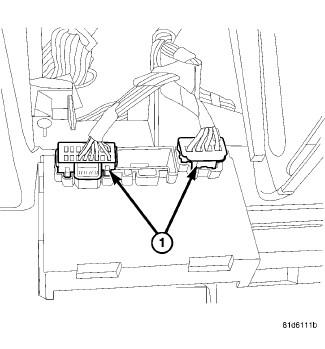

Fig 1: FDCM ELECTRICAL CONNECTORS
Courtesy of CHRYSLER LLC
Connect the two electrical connectors (1) into the FDCM.

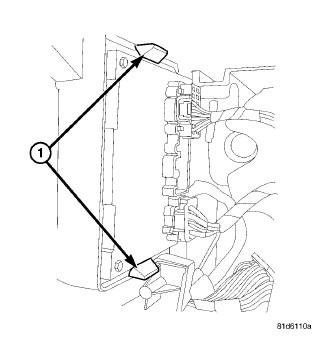

Fig 2: FINAL DRIVE CONTROL MODULE
Courtesy of CHRYSLER LLC
Install the FDCM being certain the locking tabs (1) are secure.
