Pump, Water: Installation: 3.0L

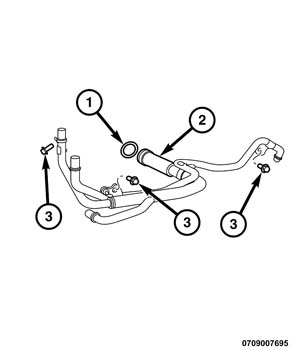

Fig 1: Engine Coolant Tube & O-Ring
GC0157463Courtesy of CHRYSLER GROUP, LLC
  1. Clean all O-ring sealing surfaces.
  2. Install a new O-ring seal (1) onto engine coolant tube (2).

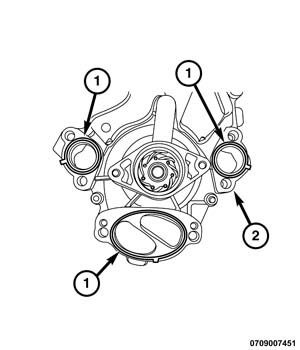

    Fig 2: Water Pump Housing O-Rings
    GC0157460Courtesy of CHRYSLER GROUP, LLC
  3. Install a new O-ring seals (1) onto water pump housing (2).

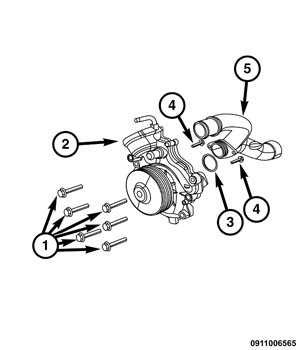

    Fig 3: Water Pump Assembly, Coolant Inlet Tube, O-Ring & Bolts
    GC0157462Courtesy of CHRYSLER GROUP, LLC
  4. Install a new O-ring seal (3) onto coolant inlet tube (5).
  5. Install the coolant inlet tube (5). Tighten bolts (4) to 11 N.m (97 in. lbs.).
  6. Install the water pump. Tighten bolts (1) to:
    • 25 N.m (18 ft. lbs.).
    • Loosen bolts one at a time 90° and then tighten to 32 N.m (24 ft. lbs.).

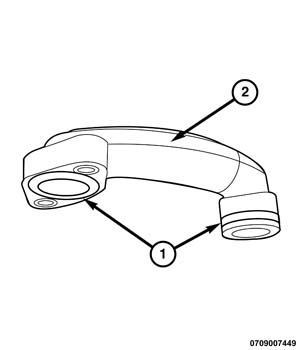

    Fig 4: Coolant Tube & O-Ring Seals
    GC0157991Courtesy of CHRYSLER GROUP, LLC
  7. Install new O-ring seals (1) onto coolant tube (2).

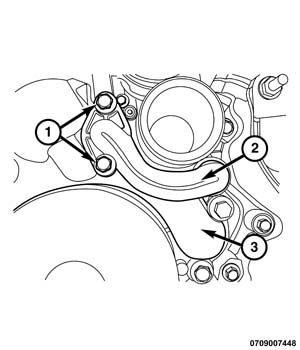

    Fig 5: Coolant Tube & Bolts
    GC0158155Courtesy of CHRYSLER GROUP, LLC
  8. Install the coolant tube (2). Tighten bolts (1) to 8 N.m (71 in. lbs.).
    Fig 6: Fuel Supply Line
    GC0146987Courtesy of CHRYSLER GROUP, LLC
  9. Install the fuel supply line (2). Refer to TUBE(S), FUEL, INSTALLATION .

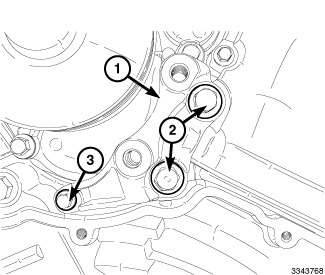

    Fig 7: Serpentine Belt Tensioner Bracket & Bolts
    GC0146730Courtesy of CHRYSLER GROUP, LLC
  10. Install the serpentine belt tensioner bracket (1) and tighten bolts (2, 3) to:
    • M10 bolts to 45 N.m (33 ft. lbs.).
    • M6 bolt to 11 N.m (97 in. lbs.).
    Fig 8: Belt Wear Indicator (Measurement A)
    GC0146632Courtesy of CHRYSLER GROUP, LLC
  11. Install serpentine belt tensioner. Refer to TENSIONER, BELT, INSTALLATION .
  12. Install the lower radiator hose to the water pump.
  13. Install the coolant recovery bottle purge hose to the purge tube.
    Fig 9: Thermostat Housing, Purge Tube, Heater Supply Hose Fitting & Bypass Housing
    GC0146956Courtesy of CHRYSLER GROUP, LLC
  14. Install the thermostat housing. Refer to THERMOSTAT, INSTALLATION .
    Fig 10: Water Pump, Temperature Sensor & Thermostat Housing
    GC0146951Courtesy of CHRYSLER GROUP, LLC
  15. Install the temperature sensor. Refer to SENSOR, COOLANT TEMPERATURE, INSTALLATION .
  16. Install the air intake assembly. Refer to BODY, AIR CLEANER, INSTALLATION, 3.0L TURBO DIESEL .
  17. Connect negative battery cable.
  18. Evacuate air and refill cooling system. Refer to STANDARD PROCEDURE .
  19. Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
    Fig 11: Engine Cover
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  20. Install the engine cover (1).
