Cable, Shift: Removal: Removal
Courtesy of CHRYSLER GROUP, LLC
- Shift transmission into PARK.
- Raise the vehicle.
- Disengage the gearshift cable eyelet (3) at transmission manual shift lever and pull cable out of the mounting bracket (4).

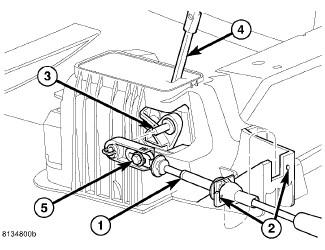

Courtesy of CHRYSLER GROUP, LLC
| 1 - GEARSHIFT CABLE |
| 2 - CABLE RETAINER AND NOTCH |
| 3 - SHIFTER ASSEMBLY PIN |
| 4 - SHIFT LEVER |
| 5 - ADJUSTMENT BOLT |
- Lower the vehicle.
- Remove the floor console as necessary to access the shift mechanism and cables. Refer to CONSOLE, CENTER, REMOVAL
.
- If necessary, remove the bolts holding the shield, covering the gearshift and park lock cables, to the shifter assembly and remove the shield.
- Remove the gearshift cable (1) from the shift lever pin (3).
- Remove the gearshift cable retainer from the notch (2) in the shifter assembly.
- Remove the gearshift cable grommet nuts from under the dash panel.
- Remove the gearshift cable from the vehicle.
