Sensor, Camshaft Position: Removal: Diesel

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover.
  3. Remove the crankcase breather hose. Refer to TUBE, CRANKCASE BREATHER, REMOVAL .

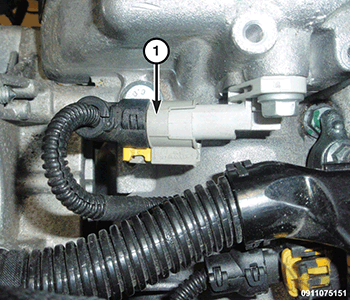

    Fig 1: Camshaft Position Sensor (CMP) Wire Harness Connector
    GC0169989Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect Camshaft Position Sensor (CMP) wire harness connector (1).

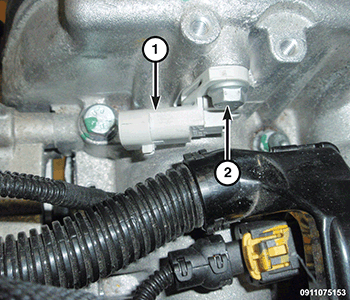

    Fig 2: CMP Sensor & Bolt
    GC0169927Courtesy of CHRYSLER GROUP, LLC
  5. Remove bolt (2) and the CMP sensor (1).
