DTC C211C: -Ignition Run/Start Input Circuit Low: Notes

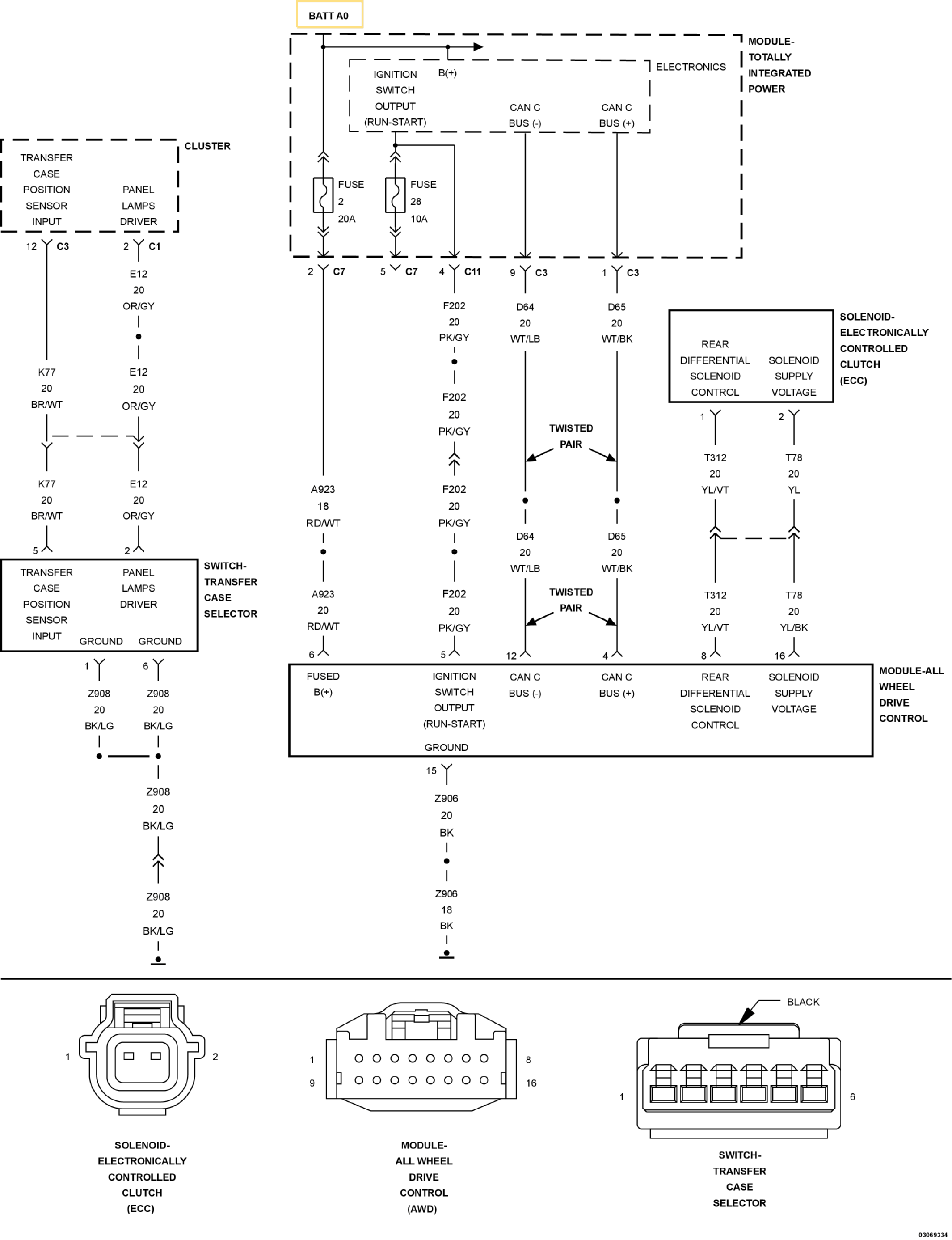

Fig 1: All Wheel Drive Control Module Circuit Wiring Diagram
GC0138258Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
