Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1-1534704-5_1534705-5

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

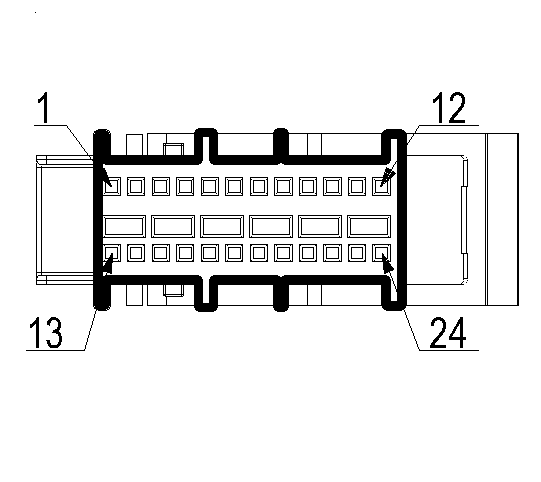

Fig 1: Module-Occupant Restraint Controller C1 Connector End View
GCWD1090969Courtesy of CHRYSLER
Fig 2: Module-Occupant Restraint Controller C1 Component Location
GCWD1130606Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D55 WT/OR 0.35 CAN B (+) N/A
2 D54 WT 0.35 CAN B (-) N/A
3 R284 LB/LG 0.35 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
4 R283 LB/DG 0.35 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
5 R60 BU/BG 0.50 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
6 R58 BU/GY 0.50 PASSENGER SEAT BELT SWITCH SENSE N/A
7 R261 BU/WH 0.50 DRIVER SEAT POSITION SENSOR DATA N/A
8 R263 BU/VT 0.50 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
9 R80 VT/BU 0.50 RIGHT FRONT IMPACT SENSOR SIGNAL N/A
10 R82 WH/BU 0.50 RIGHT FRONT IMPACT SENSOR GROUND N/A
11 R81 BU/WH 0.50 LEFT FRONT IMPACT SENSOR GROUND N/A
12 R79 BU/VT 0.50 LEFT FRONT IMPACT SENSOR SIGNAL N/A
13 R43 BU/BN 0.50 DRIVER SQUIB 1 LINE 2 N/A
14 R45 GN/OG 0.50 DRIVER SQUIB 1 LINE 1 N/A
15 R44 GY/OG 0.50 PASSENGER SQUIB 1 LINE 1 N/A
16 R42 DG/BN 0.50 PASSENGER SQUIB 1 LINE 2 N/A
17 R61 GN/VT 0.50 DRIVER SQUIB 2 LINE 2 N/A
18 R63 DB/WH 0.50 DRIVER SQUIB 2 LINE 1 N/A
19 R64 LB/WT 0.50 PASSENGER SQUIB 2 LINE 1 N/A
20 R62 BU/VT 0.50 PASSENGER SQUIB 2 LINE 2 N/A
(1) Pins not listed are not used for this connector
