Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 1-1534700-5_1534701-5

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

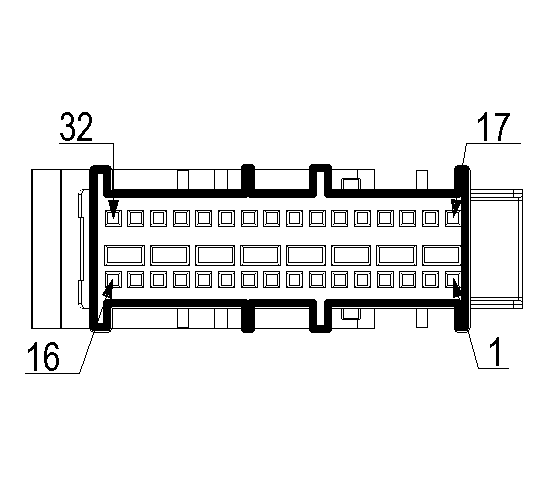

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

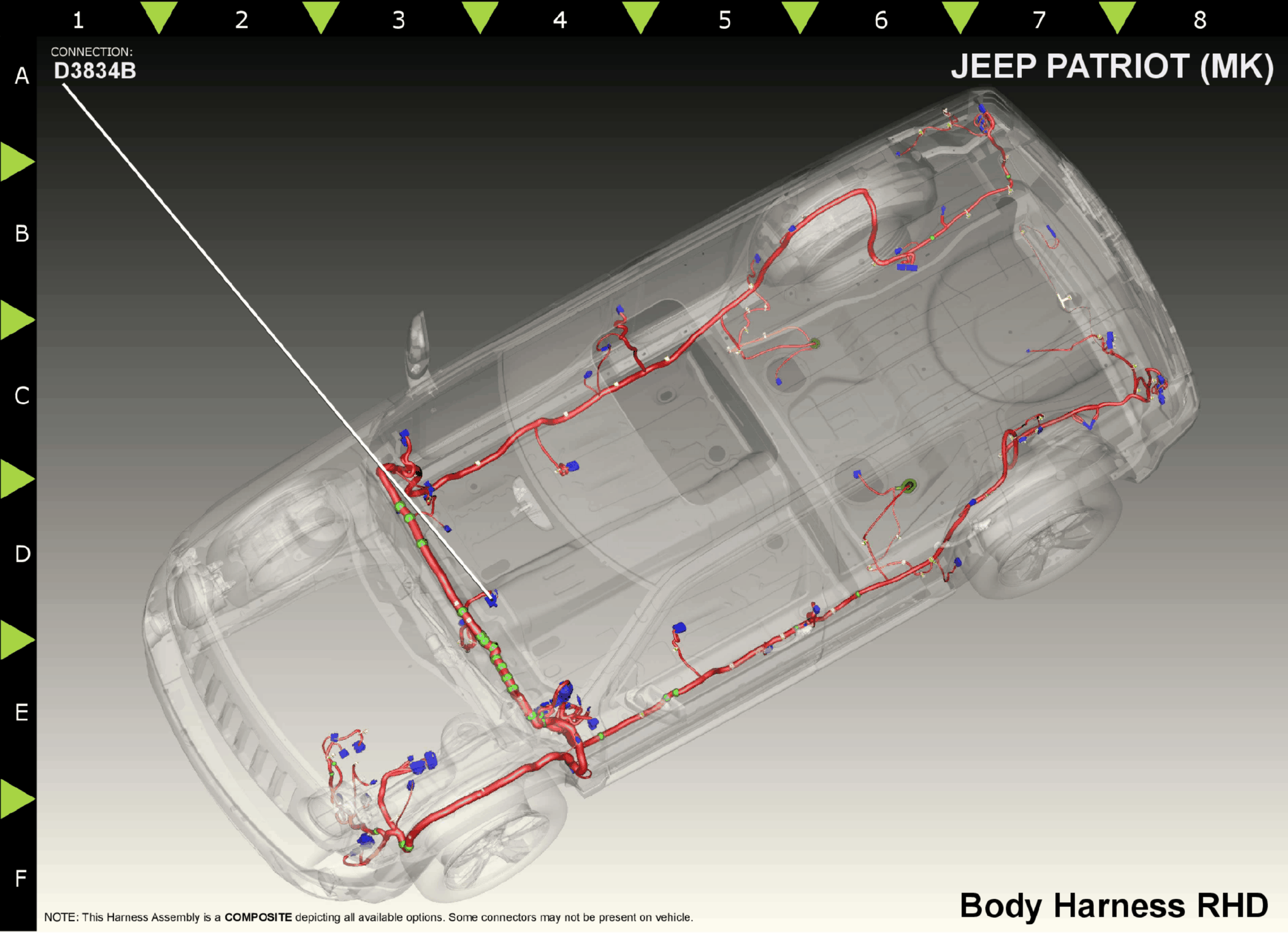

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

LB/VT

0.50

LEFT SEAT THORAX SQUIB 1 LINE 2

N/A

GY/LG

0.50

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

VT/LB

0.50

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

LB/VT

0.50

LEFT SEAT THORAX SQUIB 1 LINE 2

N/A

LG/GY

0.50

LEFT SEAT THORAX SQUIB 1 LINE 1

N/A

LB/OR

0.50

LEFT CURTAIN SQUIB 1 LINE 1

N/A

LB/WT

0.50

LEFT CURTAIN SQUIB 1 LINE 2

N/A

WT/LB

0.50

RIGHT CURTAIN SQUIB 1 LINE 2

N/A

OR/LB

0.50

RIGHT CURTAIN SQUIB 1 LINE 1

N/A

R56

LB/DG

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R54

LB/YL

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R53

LG/YL

0.50

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R55

LG/DG

0.50

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R677

PK/YL

0.50

PASSENGER ACTIVE HEAD RESTRAINT SIGNAL

N/A

R676

PK/WT

0.50

DRIVER ACTIVE HEAD RESTRAINT SIGNAL

N/A

R150

LG/DB

0.50

LEFT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

R130

LG/DB

0.50

LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

F200

PK/LB

0.35

FUSED IGNITION SWITCH OUTPUT (RUN-START)

N/A

F100

PK/VT

0.50

FUSED IGNITION RUN CONTROL OUTPUT

N/A

R160

0.50

RIGHT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

R140

0.50

RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

Z913

0.80

GROUND

N/A

R14

TN/LG

0.35

RIGHT SIDE IMPACT SENSOR 1 SIGNAL

N/A

R16

BR/LG

0.35

RIGHT SIDE IMPACT SENSOR 1 GROUND

N/A

R15

LG/BR

0.35

LEFT SIDE IMPACT SENSOR 1 GROUND

N/A

R13

LG/TN

0.35

LEFT SIDE IMPACT SENSOR 1 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
