Module-Transmission Control (D3855A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 284743-1

Part Description: Not Available

Connector No: D3855A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

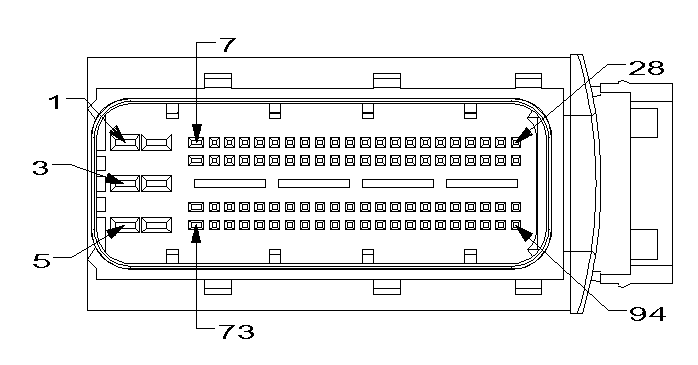

Fig 1: Module-Transmission Control Connector End View

Courtesy of CHRYSLER

Fig 2: Module-Transmission Control Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z919

0.80

GROUND

N/A

T78

0.50

SOLENOID SUPPLY

N/A

Z919

0.80

GROUND

N/A

T118

0.50

LP VFS CONTROL

N/A

Z919

0.80

GROUND

N/A

A190

YL/RD

FUSED B(+)

N/A

T818

YL/OR

0.35

LINEAR SOLENOID 4 (-)

N/A

T816

YL/PK

0.35

LINEAR SOLENOID 3 (-)

N/A

T42

DG/YL

0.50

TRS T42 SIGNAL

N/A

DG/LB

0.50

TRS T1 SIGNAL

N/A

DG/YL

0.50

AUTOSTICK UPSHIFT SIGNAL

N/A

T812

DG/TN

0.35

SHIFTER SOL CONTROL

N/A

T814

YL/BR

0.35

LINEAR SOLENOID 2 (-)

N/A

T41

YL/DB

0.50

TRS T41 SIGNAL

N/A

DG/DB

0.50

TRS T3 SIGNAL

N/A

T803

DG/BR

0.35

PRESS SW 4

N/A

T801

DG/RD

0.35

SHIFT SOLENOID 5 CONTROL

N/A

T13

DG/VT

0.35

SPEED SENSOR GROUND

N/A

T130

DG/VT

0.35

OUTPUT SPEED SENSOR GROUND

N/A

T54

DG/OR

0.35

TRANSMISSION TEMPERATURE SIGNAL

N/A

T52

DG/OR

0.35

INPUT SPEED SIGNAL (6F24)/OUTPUT SPEED SIGNAL (CVT)

N/A

T16

YL/OR

0.80

TRANSMISSION CONTROL OUTPUT

N/A

A190

YL/RD

FUSED B(+)

N/A

D65

WT/LG

0.35

CAN C (+)

N/A

D64

WT/LB

0.35

CAN C (-)

N/A

T44

YL/DG

0.50

AUTOSTICK DOWNSHIFT SIGNAL

N/A

T820

YL/WT

0.35

TRANSMISSION OIL TEMPERATURE SIGNAL

N/A

T14

DG/BR

0.35

OUTPUT SPEED SIGNAL (6F24)/INPUT SPEED SIGNAL (CVT)

N/A

T790

GY/BK

0.35

SHIFT SOLENOID 1 CONTROL

N/A

T802

DG/PK

0.35

PRESS SW 3

N/A

A190

YL/RD

0.80

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
