Diagnostic Test

VERIFY THAT DTC B212C-IGNITION RUN/START INPUT CIRCUIT OPEN IS ACTIVE IN THE ORC.
NOTE:
Make sure the battery is fully charged.
1. Turn the ignition on.
2. Wait 10 seconds.
3. With the scan tool, read Occupant Restraint Controller (ORC) DTCs.
  Does the scan tool display active: B212C-IGNITION RUN/START INPUT CIRCUIT OPEN?

  Yes
  - Go To 2
  No
  - Go To 8
INSPECT FUSE 28 IN TIPM

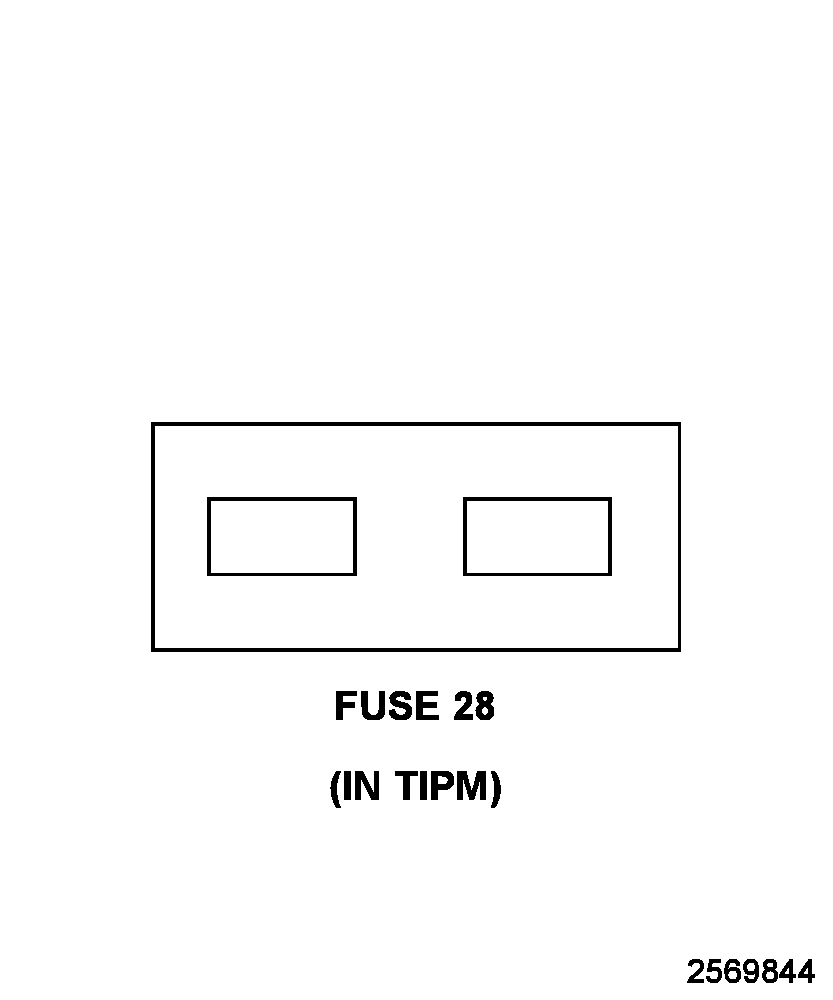

Fig 1: Inspecting Fuse 28 In TIPM
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Remove TIPM Fuse 28 and inspect the fuse.
  NOTE:
  Check connectors - Clean and repair as necessary.

  Is the Run/Start fuse open?

  Yes
  - Go To 3
  No
  - Go To 5
CHECK THE (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE
1. Measure the resistance of the (F200) Fused Ignition Switch Output (Run-Start) circuit between ground and the Airbag Run-Start Fuse 28 (output side) terminal.
  Is the resistance below 100.0 Ohms?

  Yes
  - Go To 4
  No
  - Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Replace Airbag Run-Start Fuse 28 in TIPM.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
CHECK THE (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE WITH ORC DISCONNECTED

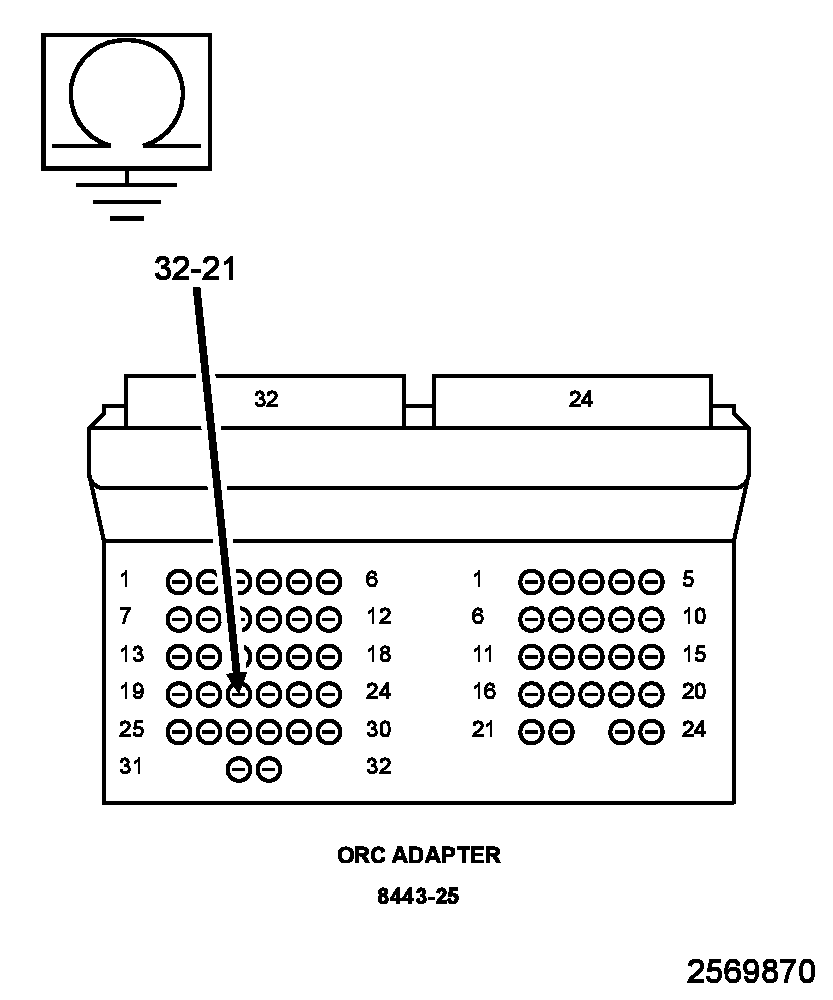

Fig 2: Checking Fused Ignition Switch Output (Run-Start) Circuit Resistance
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect both ORC connectors.
  NOTE:
  Check connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
3. Measure the resistance of the (F200) Fused Ignition Switch Output (Run-Start) circuit between cavity 32-21 of the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) and ground.
  Is the resistance below 100.0 Ohms?

  Yes
  - Repair the (F200) Fused Ignition Switch Output (Run-Start) circuit for a short to ground.
  - Replace the Airbag Run-Start Fuse 28 in TIPM.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
  No

  WARNING:
  If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
  - Replace the ORC in accordance with the Service Information.
  - Replace the Airbag Run-Start Fuse 28 in TIPM.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
CHECK THE AIRBAG RUN/START FUSE 28 SUPPLY VOLTAGE IN TIPM

Fig 3: Inspecting Fuse 28 In TIPM
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Measure the voltage between Ground and the Airbag Run-Start Fuse 28 (supply side) terminal.
  Is the voltage above 6.0 volts?

  Yes
  - Go To 6
  No
  - Replace the TIPM in accordance with the Service Information.
  - Perform the BODY SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
CHECK THE (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

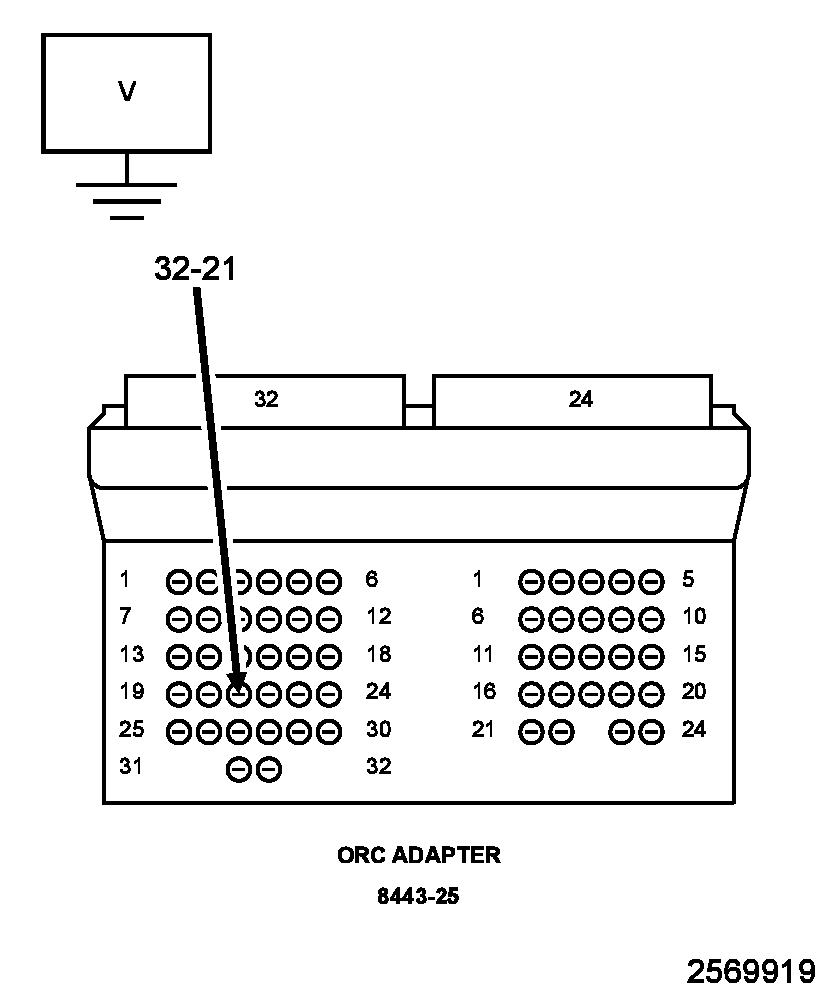

Fig 4: Checking Fused Ignition Switch Output (Run-Start) Circuit For Open
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Reinstall the Airbag Run-Start Fuse.
2. Disconnect the ORC connectors.
  NOTE:
  Check connectors - Clean and repair as necessary.
3. Install the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the voltage of the (F200) Fused Ignition Switch Output (Run-Start) Circuit between the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) connector cavity 32-21 and ground.
  Is the voltage above 6.0 volts?

  Yes

  WARNING:
  Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

  WARNING:
  If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
  - Replace the ORC in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
  No
  - Go To 7
CHECK THE (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

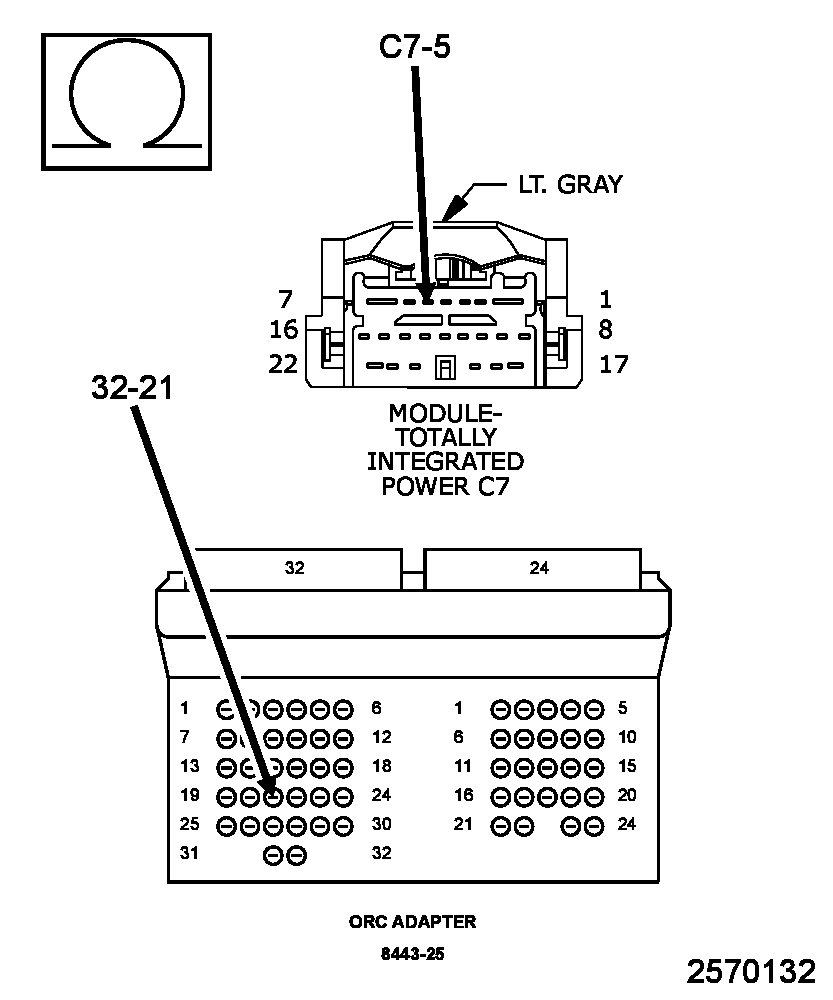

Fig 5: Checking Fused Ignition Switch Output (Run-Start) Circuit For Open
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the TIPM C7 connector.
  NOTE:
  Check connectors - Clean and repair as necessary.
2. Measure the resistance of the (F200) Fused Ignition Switch Output (Run-Start) Circuit between the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) connector cavity 32-21 and cavity 5 of the TIPM C7 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the TIPM in accordance with the Service Information.
  - Perform the BODY SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
  No
  - Repair the open (F200) Fused Ignition Switch Output (Run-Start) circuit.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase all DTCs from all Airbag modules.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
  WARNING:
  Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
7. With the scan tool, monitor active codes as you work through the following steps.
  WARNING:
  Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If only stored codes return, continue the test until the problem area has been isolated.
10. In the previous steps you have attempted to recreate the conditions responsible for setting the active DTC in question.
  Does the scan tool display any ACTIVE DTCs?

  Yes
  - Perform the appropriate diagnostic procedure. Refer to OCCUPANT RESTRAINT CONTROLLER (ORC) - DIAGNOSTIC CODE INDEX .
  No
  - No problem found. Erase all codes before returning the vehicle to the customer.
