Primary Thermostat - Gas Engine

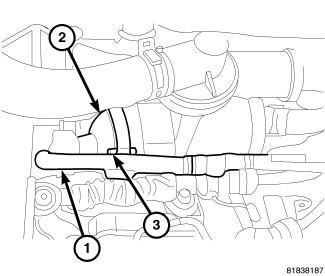

Fig 1: Primary Thermostat
GC0083979Courtesy of CHRYSLER GROUP, LLC
1 - COOLANT HOSE
2 - INLET HOUSING
3 - BOLT
  1. Partially drain THE cooling system. Refer to STANDARD PROCEDURE .
  2. Remove THE air filter housing. Refer to STANDARD PROCEDURE .
  3. Disconnect the coolant hose (1) from the inlet housing (2).
  4. Remove inlet housing bolts (3).
  5. Remove the thermostat assembly, and clean the sealing surfaces.
