Sensor, Coolant Temperature: Installation: 3.0L

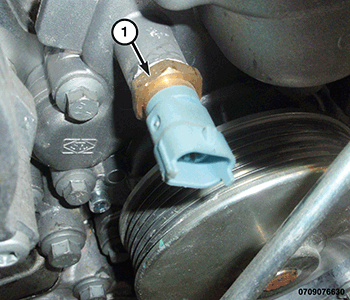

Fig 1: Coolant Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install the coolant temperature sensor (1) into water pump housing and to 11 N.m (8 ft. lbs.).

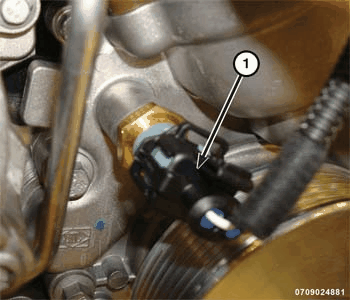

   Fig 2: Coolant Temperature Sensor Wire Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the coolant temperature sensor wire harness connector (1).
3. Fill the cooling system. Refer to STANDARD PROCEDURE .
   Fig 3: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
4. Install the engine cover (1).
5. Connect the negative battery cable.
