B1643-Rear Left Turn Lamp Control Circuit Low: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

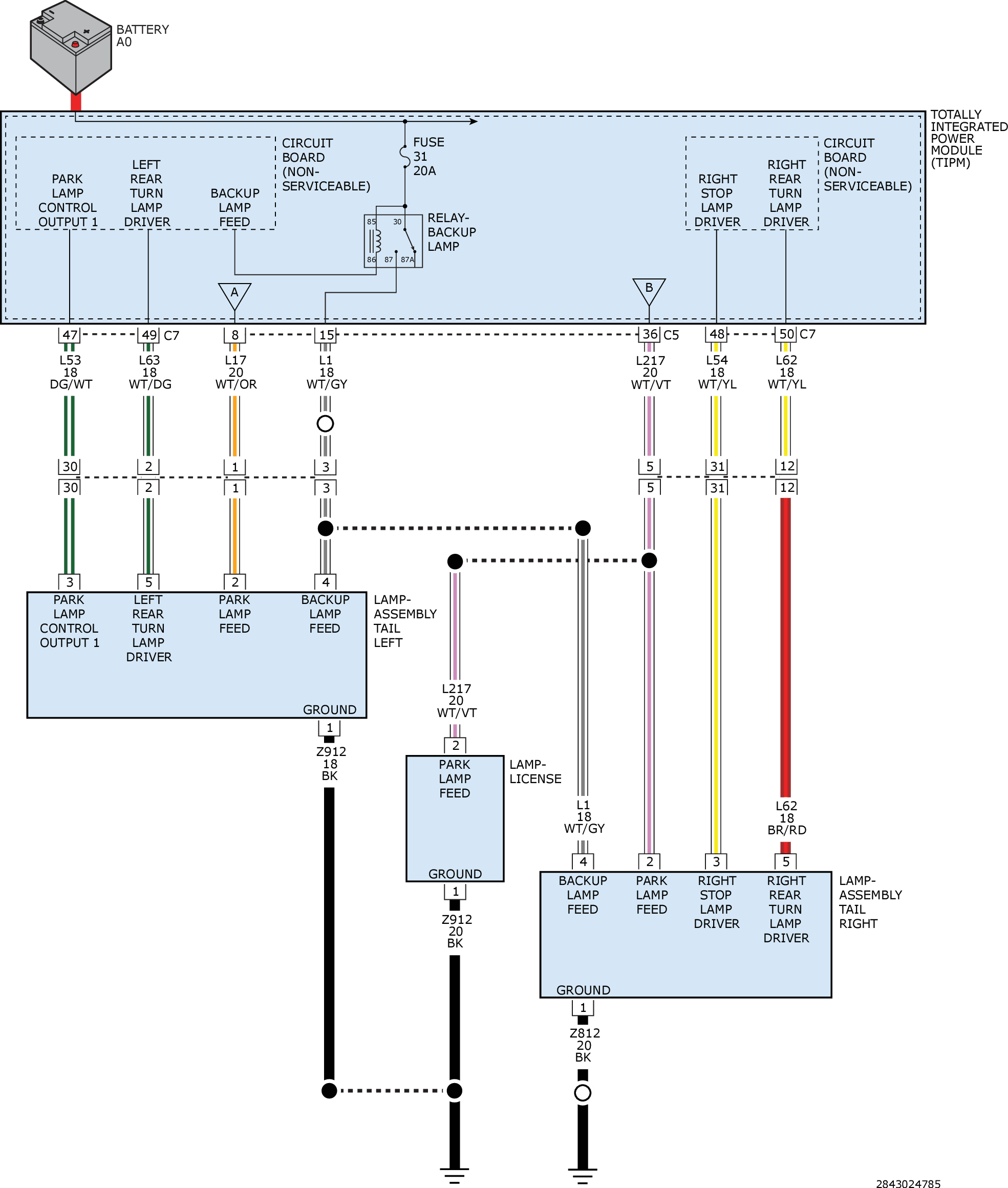

Fig 1: Rear Turn Lamp & Stop Lamp Control Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
