Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 1438640-2

Part Description: 32P SHUNTED ORC MODULE CONNECTOR

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

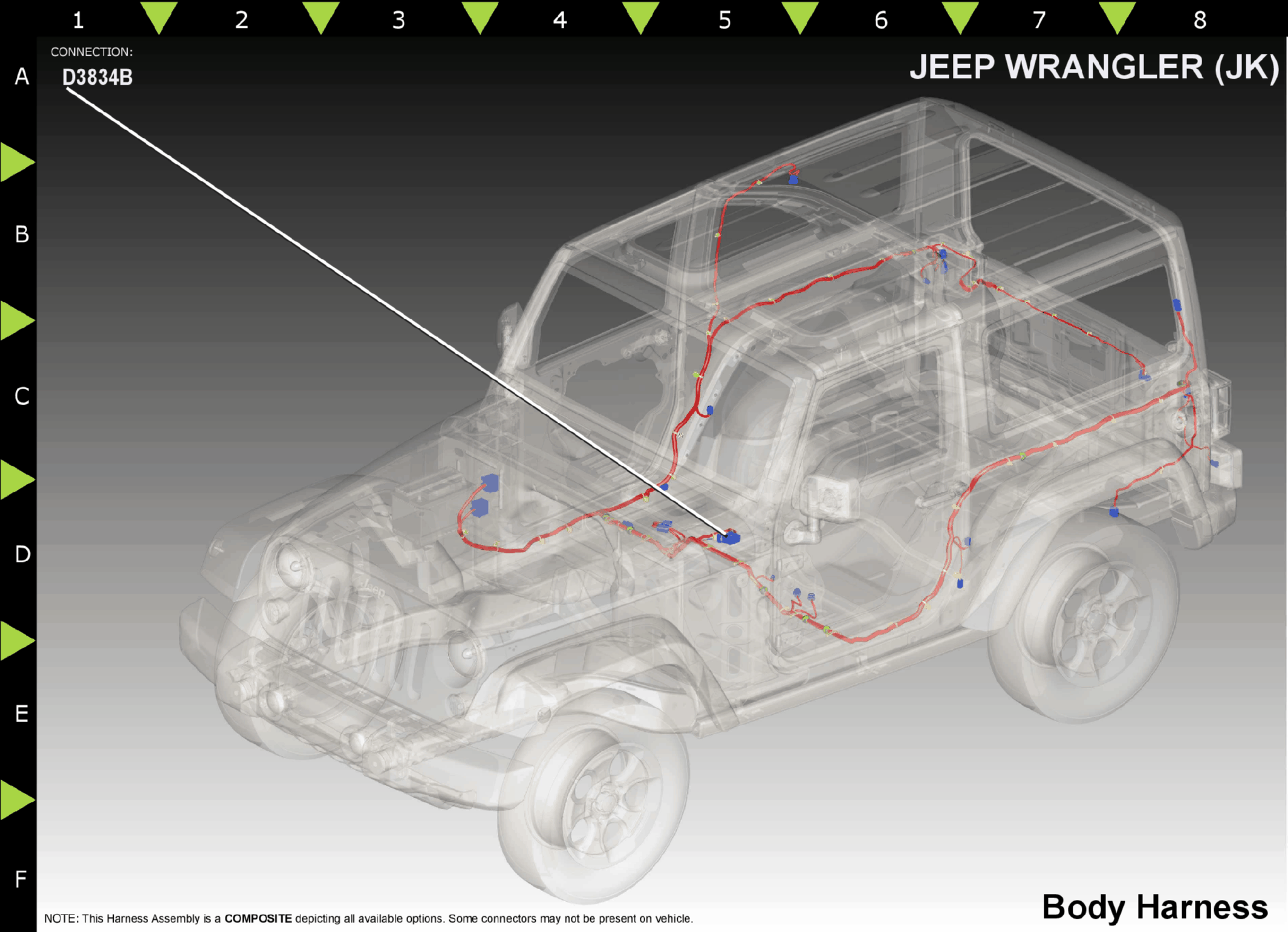

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R505

LG/DG

0.50

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R503

LG/YL

0.50

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R504

LB/YL

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R506

LB/DG

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R33

LG/WT

0.75

HEAD THORAX LEFT (-)

N/A

R31

LG/OR

0.75

HEAD THORAX LEFT (+)

N/A

R32

LB/OR

0.75

HEAD THORAX RIGHT (+)

N/A

R34

LB/WT

0.75

HEAD THORAX RIGHT (-)

N/A

R54

LB/YL

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R56

LB/DG

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R13

LG/BG

0.50

LEFT SIDE IMPACT SENSOR 1 SIGNAL

N/A

R15

LG/BR

0.50

LEFT SIDE IMPACT SENSOR 1 GROUND

N/A

R16

BR/LG

0.50

RIGHT SIDE IMPACT SENSOR 1 GROUND

N/A

R14

BG/LG

0.50

RIGHT SIDE IMPACT SENSOR 1 SIGNAL

N/A

R261

LB/WT

0.50

DRIVER SEAT POSITION SENSOR DATA

N/A

R263

LB/VT

0.50

DRIVER SEAT POSITION SENSOR VOLTAGE

N/A

R283

LB/DG

0.75

PASSENGER SEAT OCCUPANT DETECTION SIGNAL

N/A

R284

LB/LG

0.75

PASSENGER SEAT OCCUPANT DETECTION RETURN

N/A

Z913

0.50

GROUND

N/A

F100

PK/VT

0.50

FUSED IGNITION RUN CONTROL OUTPUT

N/A

F201

PK/OR

0.50

FUSED IGNITION RUN/START CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
