2.2L Diesel 1/2

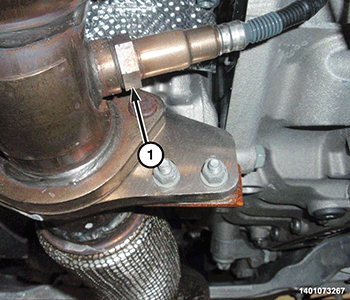

GC0169973Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (1) and tighten to the proper torque. Refer to TORQUE SPECIFICATIONS  .

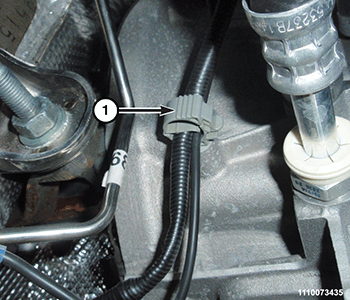

    GC0169918Courtesy of CHRYSLER GROUP, LLC
  2. Install the wire into retaining clip and close the clip (1).

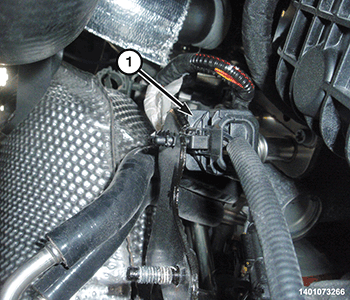

    GC0169996Courtesy of CHRYSLER GROUP, LLC
  3. Install the oxygen sensor wire harness connector onto the support bracket and connect the oxygen sensor wire harness connector (1).
  4. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
