B1052-15-Column Switch Module Front Wiper Commands-Circuit Short To Battery Or Open: Notes

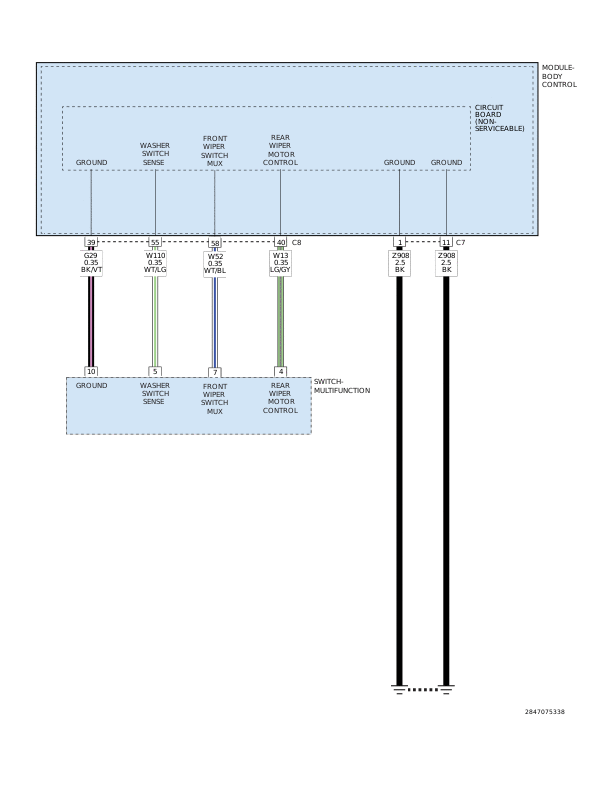

GC0168790

Courtesy of CHRYSLER GROUP, LLC
