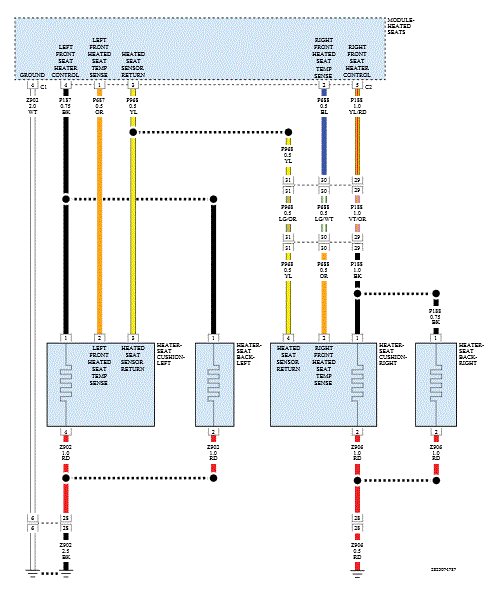

B1E9A-13-Front Right Heater Control Circuit - Circuit Open: Notes

GC0168252

Courtesy of CHRYSLER GROUP, LLC
