Section 249 (Charging (Service Information)): Generator: Installation: 3.0L
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Position the generator to the vehicle for installation.

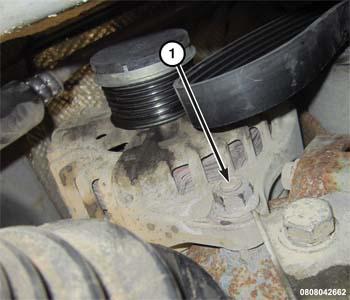

- Install the upper generator bolt.

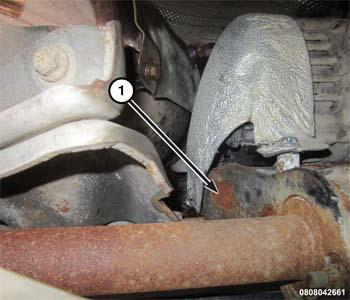

- Install the lower generator bolt. You may need to reposition the generator to get the bolt hole in the intermediate bearing shaft support and the generator to line up properly.

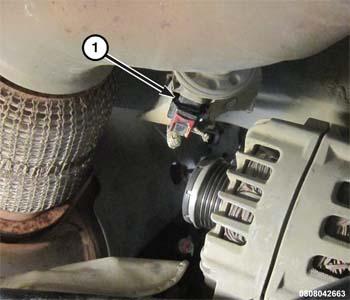

- Connect all connectors to the generator.

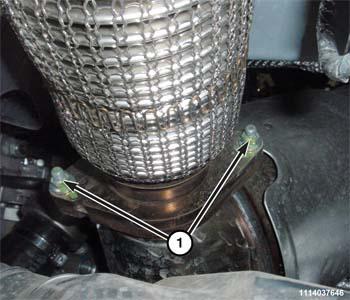

- Position the exhaust back into proper position and install bolts to the flange to secure.
- Install the Diesel Exhaust Fluid (DEF) injector. Refer to INJECTOR, DIESEL EXHAUST FLUID, INSTALLATION .
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION - 3.0L DIESEL .
- Connect the negative battery cables.
