Section 249 (Charging (Service Information)): Generator: Installation: 3.6L
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

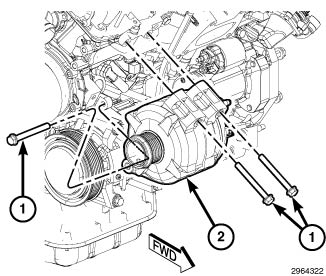

- Position the generator (2) to the engine and loosely install the upper and lower retainers (1).
Tighten the upper generator mounting retainers to 25 N.m (18 ft. lbs.).
- Tighten the lower generator bolt.
- Install the B+ cable (3) and nut (2). Tighten to 12 N.m (9 ft. lbs.).
- Install the generator field connector (1).
- Install the idler pulley (7). Tighten the bolt to 30 N.m (22 ft. lbs.).
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION - 3.6L .
- Install the lower belly pan.
- Lower the vehicle.
- Install the radiator cooling fans. Refer to FAN, COOLING, INSTALLATION - 3.6L .
- Connect the negative battery cable.
